D-303222 PowerMaster-10 / PowerMaster-30 Installer's Guide 17

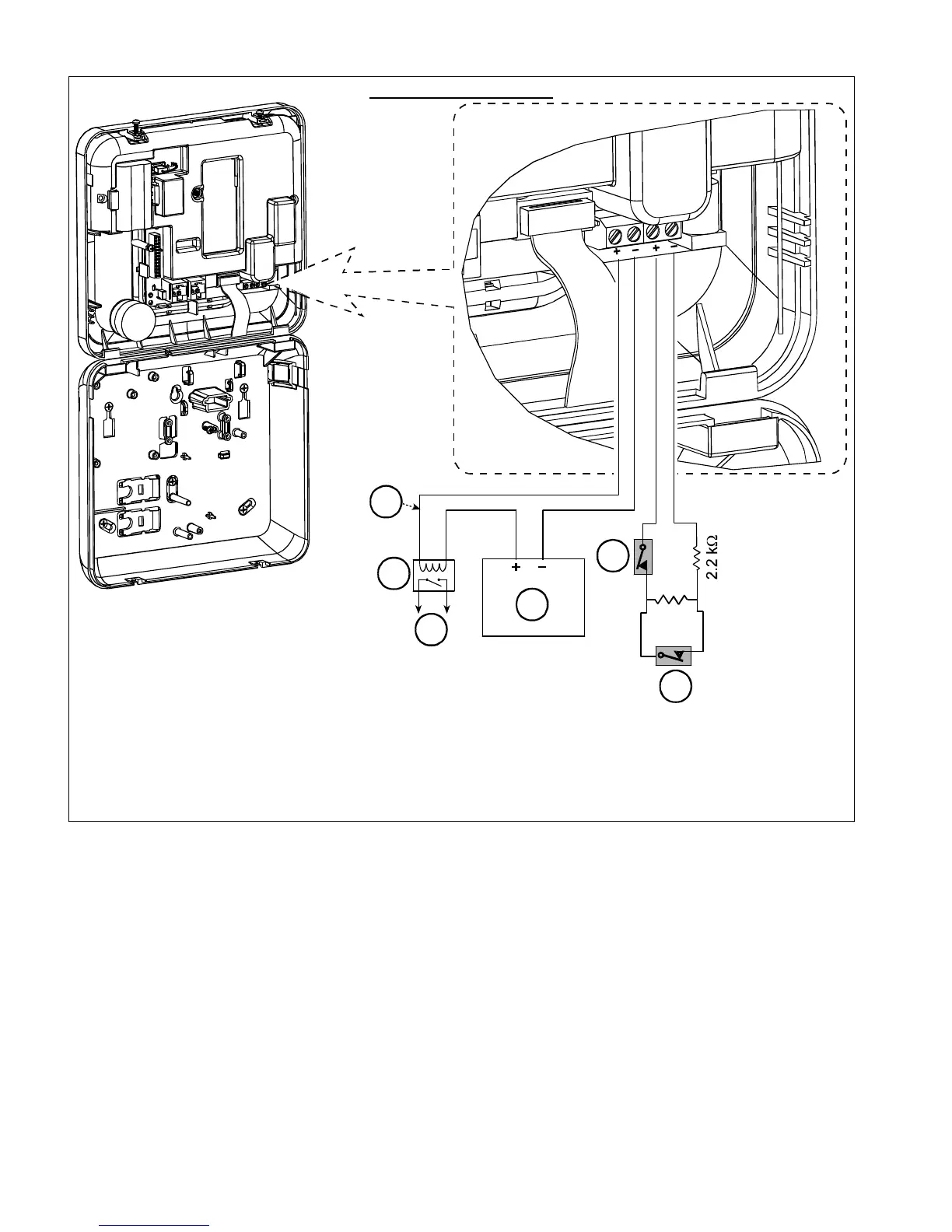

PGM AND ZONE WIRING
2.2 k
A
B
C
D
E
F
A. PGM output
Vmax=30v
Imax=100mA
C. Device
D. External power supply 5 - 30VDC
E. Tamper
B. Relay
F. Alarm
Note: Do not use mains cable other than that supplied by the manufacturer (3 m long).
Figure 3.9 – PGM & Zone Wiring
