Mobile Generator
Operation (Deep Sea Controller)
Continued from the previous page.

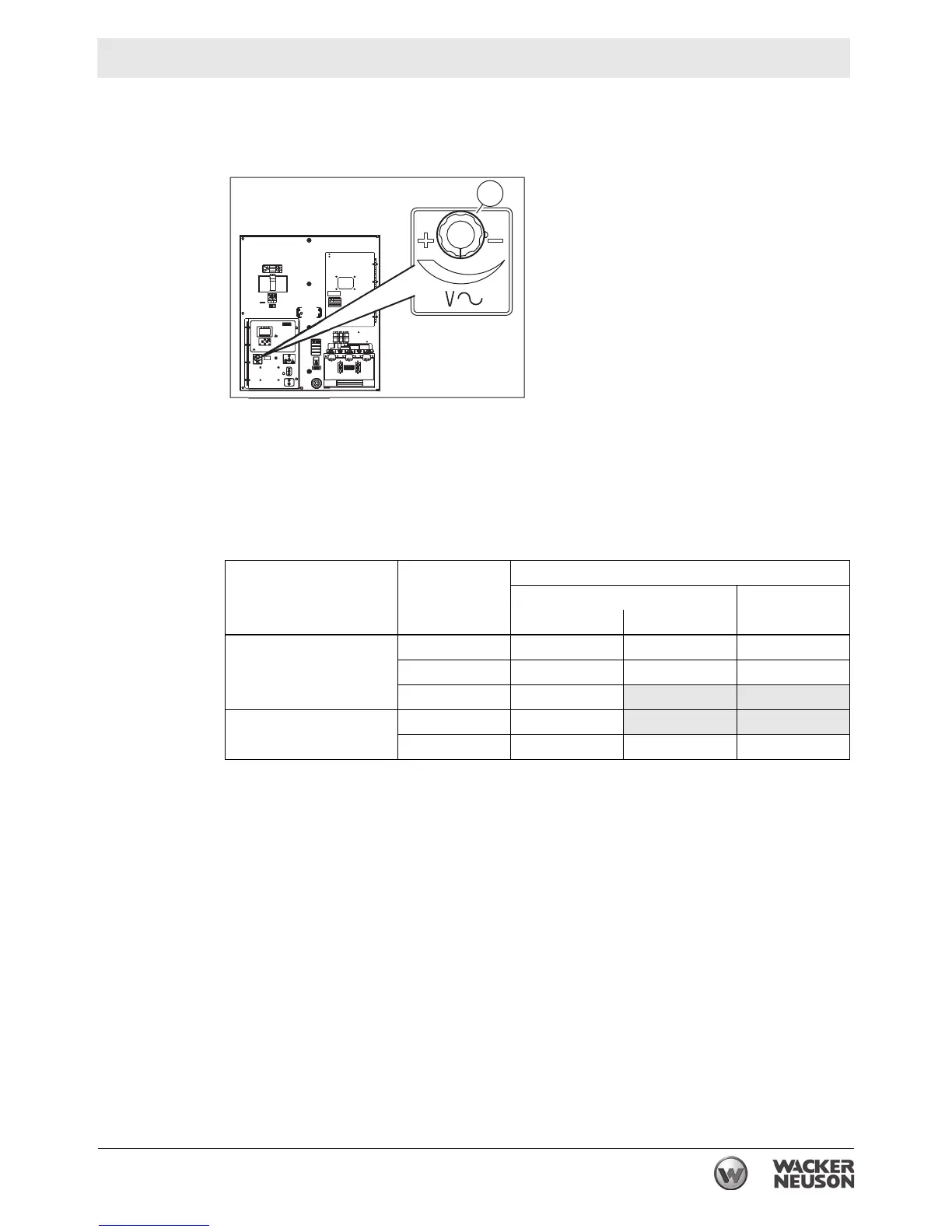

Using the
rheostat
The voltage adjustment rheostat (d) is used to fine-tune the voltage as needed
while the machine is running.
Care must be taken when using the voltage adjustment rheostat because adjusting
the voltage for 3-phase operation affects the voltage available at the single-phase
outlets. As the 3-phase voltage increases, so does the single-phase voltage.
NOTICE: Do not use the GFCI or twist-lock receptacle (120V) when the 1Ø voltage
is above 135V. Damage to the receptacle and the tools connected to it may occur.
1
Do not use receptacle with this voltage.
2
Voltage may be too high for some tools and equipment. Check tool/equipment specifications.
Switch Position
3Ø Voltage
(L-L-L)
Corresponding 1Ø voltage
Twist lock receptacle
L-L (240V) L-N (120V) 120V GFCI
240 VAC 208 208 120 120
220 220 125 125
240 240
139
1
139
1
480 VAC 480 240 139
1
139
1
460 230 133
2
133
2
wc_gr010391
d
