Mobile Generator
How to Connect Loads

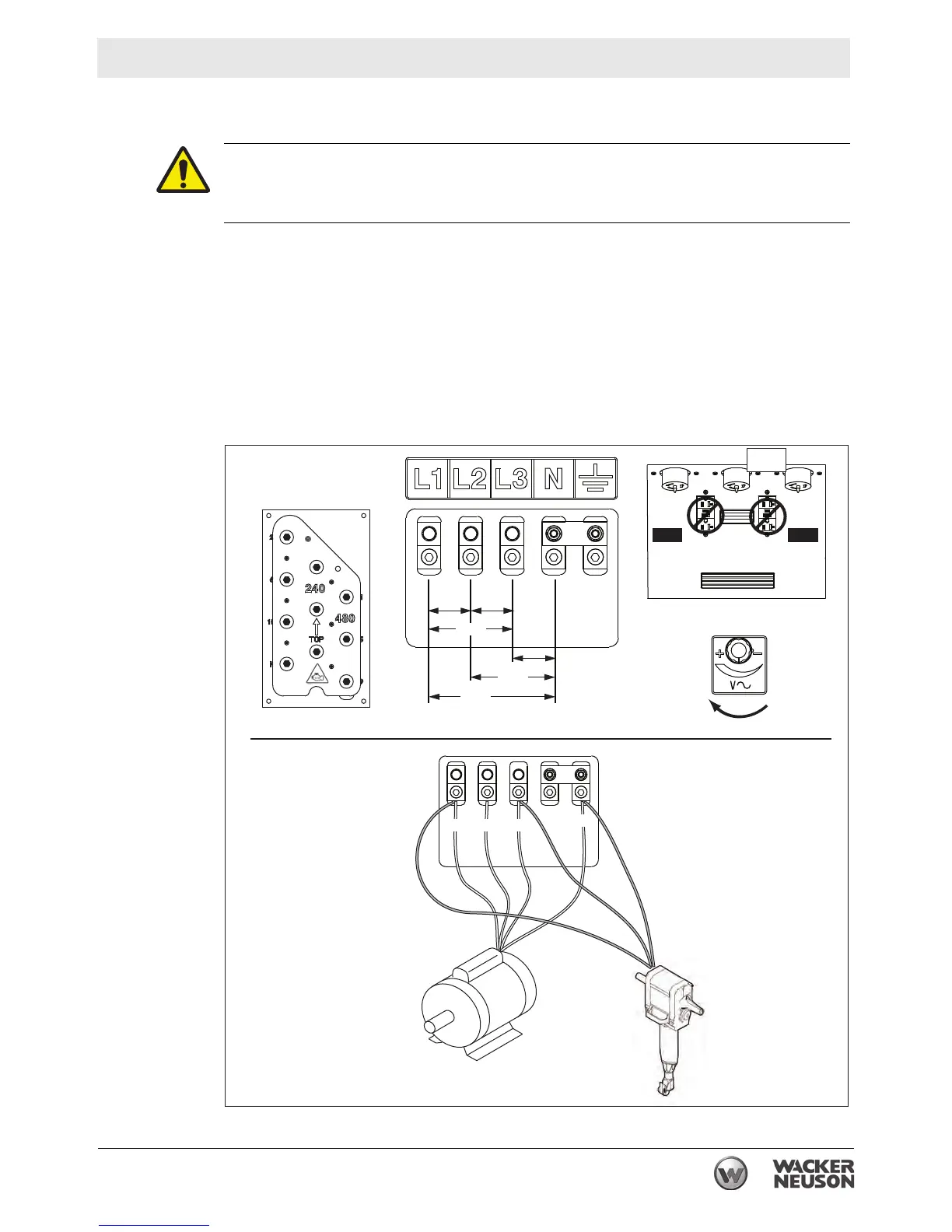

11.4 Connecting a 240V 3Ø Load and a 240V 1Ø Load
1. Stop the engine and turn the main circuit breaker off.
2. Set the voltage selector switch to the 240V position.
3. Open the lug door and connect the wires from the load as shown.
4. Close the lug door.
5. Start the machine and fine-tune the voltage as necessary using the voltage
adjustment rheostat.
Note: Graphic is representative only. Your machine may vary.
WARNING
Electric shock hazard. High voltage can cause serious injury or death.
► Connections must be made by a qualified electrician.
240V 3Ø
HOT HOT HOT
GN
139V
240V 3Ø
240V 240V
139V
139V
139V
240V
240V 1Ø
139V
wc_gr011546
240 L-L
139 L-N
