Mobile Generator
How to Connect Loads
11.6 Connecting a 208V 3Ø Load and Multiple 120V 1Ø Loads
1. Stop the engine and turn the main circuit breaker off.
2. Set the voltage selector switch to the 240V position.

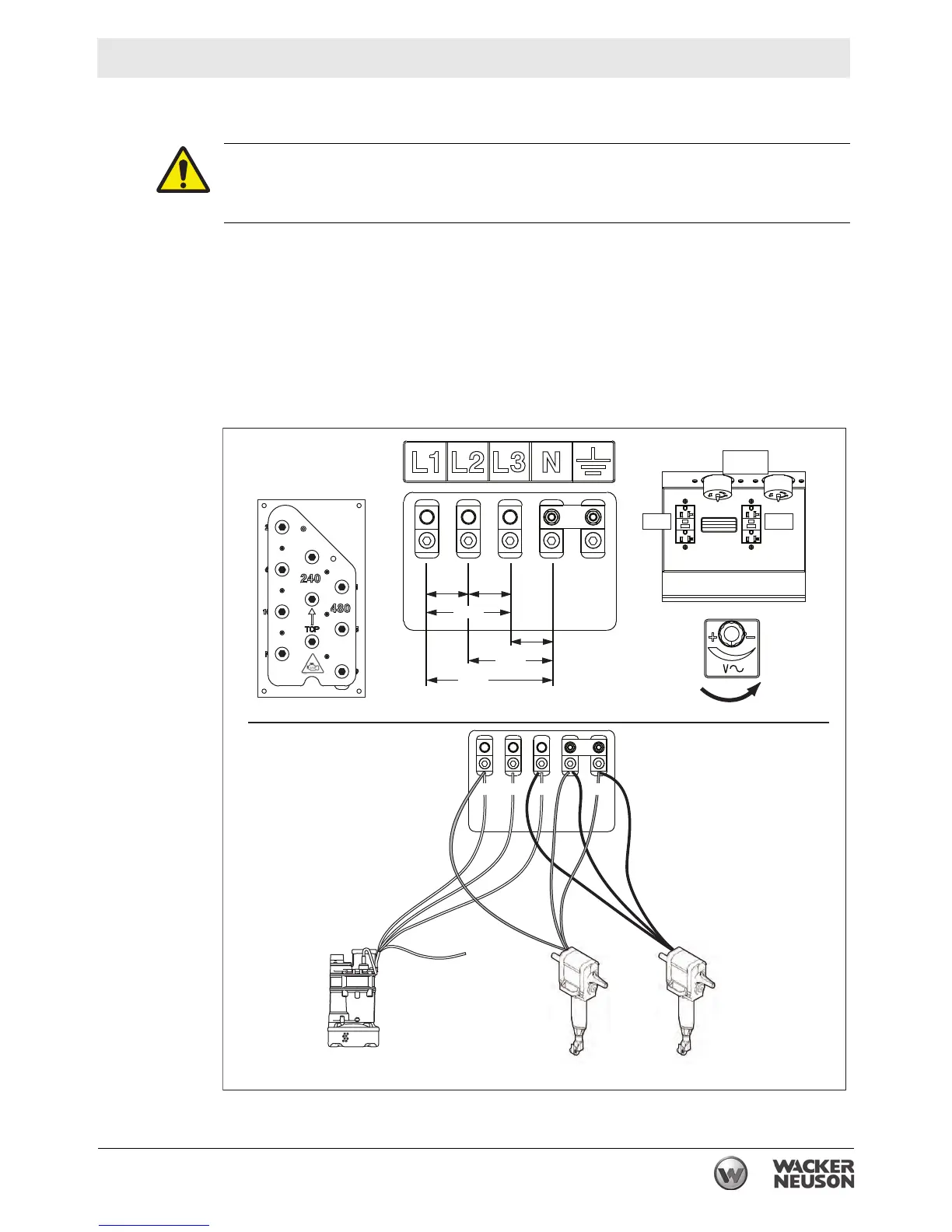

3. Open the lug door and connect the wires from the load as shown.
4. Close the lug door and start the machine.
5. Fine-tune the voltage as necessary using the voltage adjustment rheostat.
Note: Graphic is representative only. Your machine may vary.
WARNING
Electric shock hazard. High voltage can cause serious injury or death.
► Connections must be made by a qualified electrician.
wc_gr011549
208 L-L
120 L-N
120V 120V
208V 208V
120V
120V
120V
208V
240V 3Ø
208V 3Ø
120V 1Ø 120V 1Ø
TO GND
LUG
HOT HOT HOT GNWH
When connecting multiple
120V loads:
Use L1 as "hot" for first load.
Use L3 as "hot" for second load.
Use L2 as "hot" for third load.
Balance the load
