Wacker Neuson G 240

wc_tx003620gb_FM10.fm
119
Mobile Generator
How to Connect Loads
Continued from the previous page.

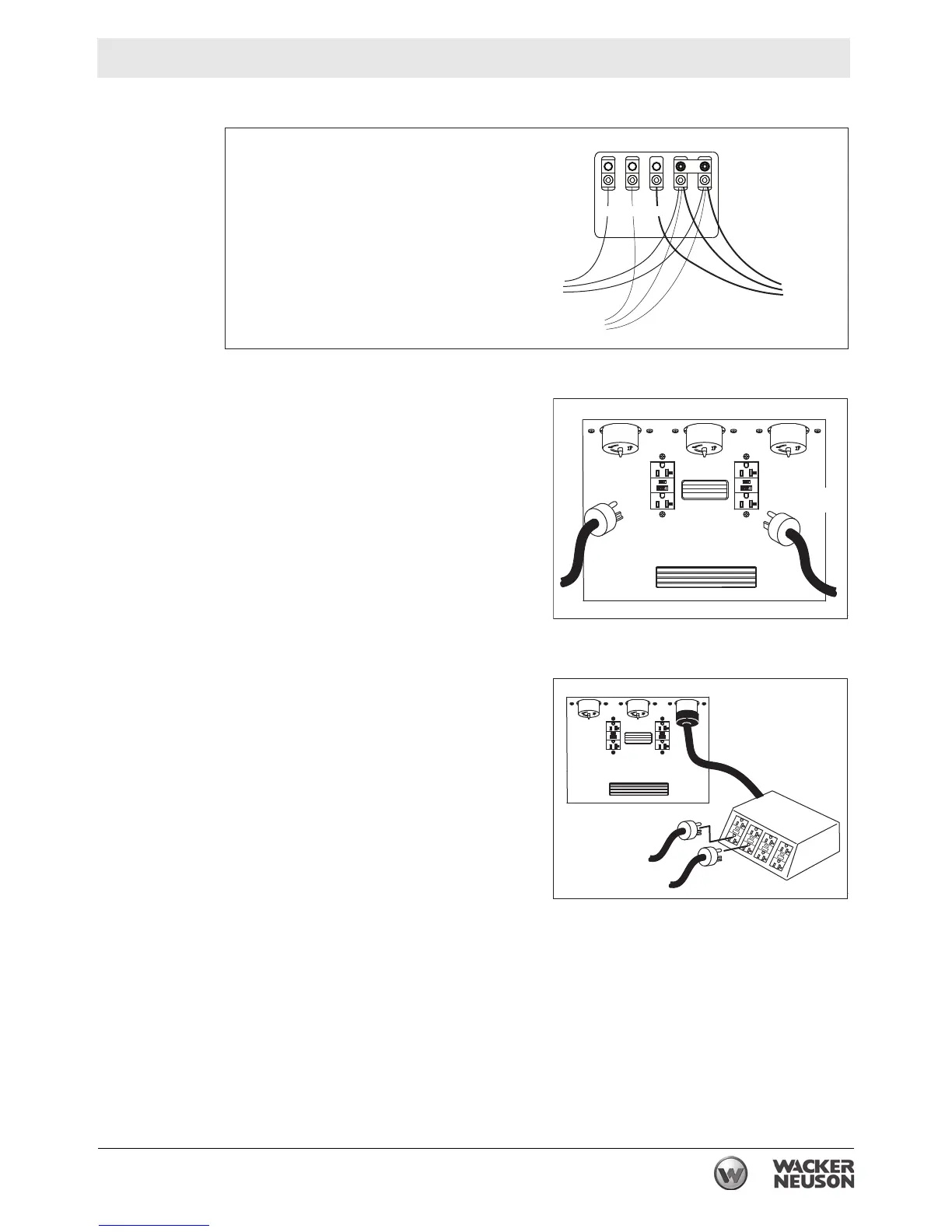

Using the
receptacles
This information applies whether the
machine is running in 3Ø or in 1Ø.
When connecting two loads to the duplex
receptacles, instead of plugging both
loads into the same duplex receptacle,
plug the first load into one of the duplex
receptacles. Then, plug the second load
into the other duplex receptacle.
Additional loads can be plugged into
either duplex receptacle.
When using the 240V twist-lock
receptacle and a distribution box, instead
of plugging both loads into the same
duplex receptacle of the distribution
panel, plug the first load into one of the
duplex receptacles. Then, plug the
second load into a different duplex
receptacle of the distribution box.
L1 L2 L3 N GND
Use L1 as "hot" for first load.
Use L3 as "hot" for second load.
Use L2 as "hot" for third load.
wc_gr011544
HOT HOT HOT
LOAD 2
LOAD 3
LOAD 1
When connecting multiple 120V 1Ø loads:
With voltage selected to 240
wc_gr011320
LOAD 2
LOAD 1
wc_gr011321
LOAD 1
LOAD 2
