WEG CFW-10 - Page 80

80
CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
Range
[Factory Setting]
Parameter Description / Notes
a) GENERAL ENABLE b) START/STOP
open
Output
frequency
(Motor
speed)
motor runs
freely
Time
Time
0 V
Accel.
ramp
D I
Output frequency
(Motor speed)
Decel.
Ramp
Time
Time
Accel.
ramp
openD I
c) WIRE START/STOP
Time
Time
open
DI2 - Stop
Time
Time
Output
Frequency
(Motor)
speed)
DI1 - Start
open
6) When setting P263 to P266 = 26 it is necessary
to set P221 and/or P222 = 7.
7) P263 and P266 = 27 selection requires P203 = 1
to be programmed.
8) If different acceleration and deceleration times are
desired for a given operation condition (for
instance for a set of frequencies or for a direction
of rotation), check if it possible to use the
multispeed function with Ramp 2 and FWD/REV
with Ramp 2.
9) Only one digital input can be programmed for each
function. If more than one input has been
programmed, programming error will be displayed
(E24).

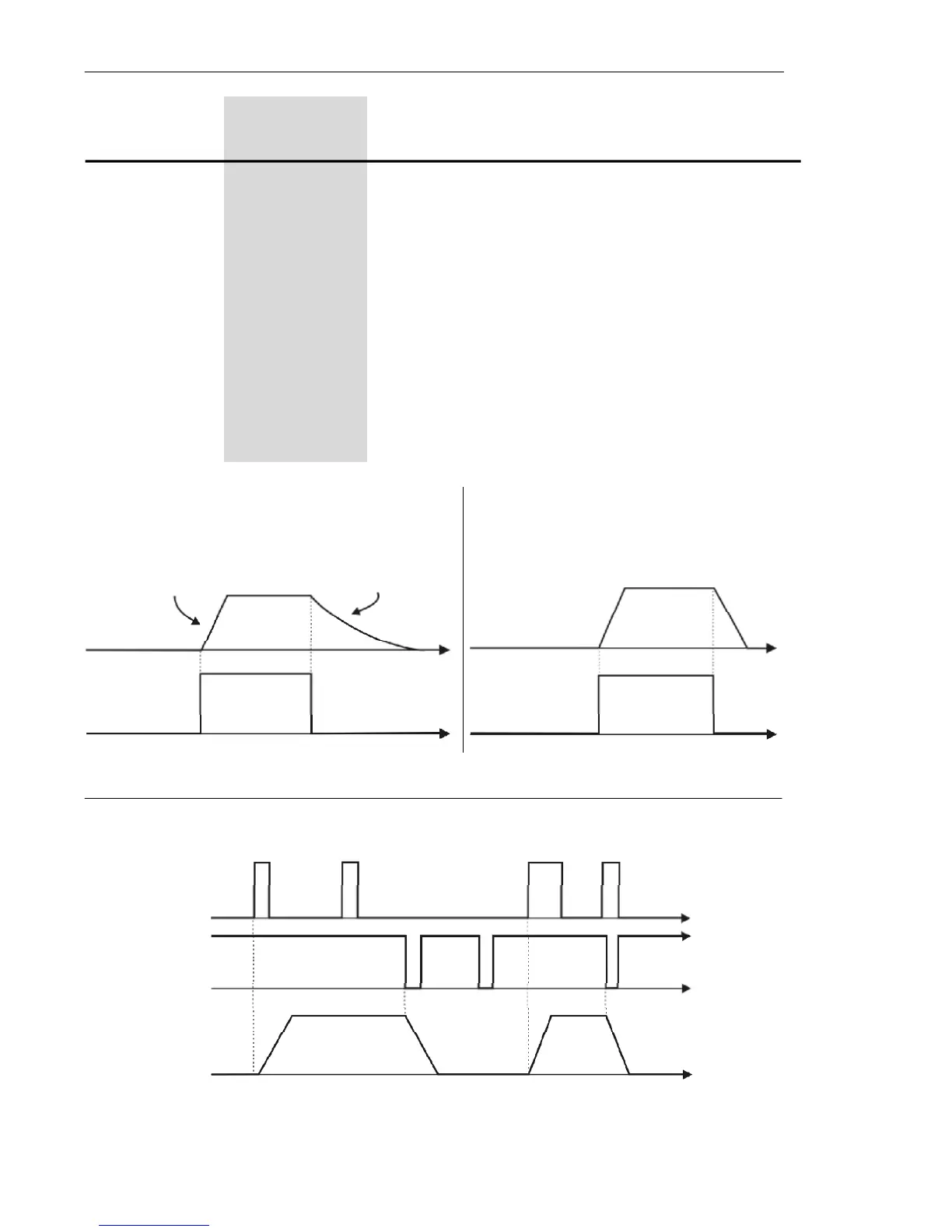

Figure 6.19 a) to c) - Details about the function of the digital inputs
0 V
0 V
0 V
