CFW-08 OPTIONS AND ACCESSORIES

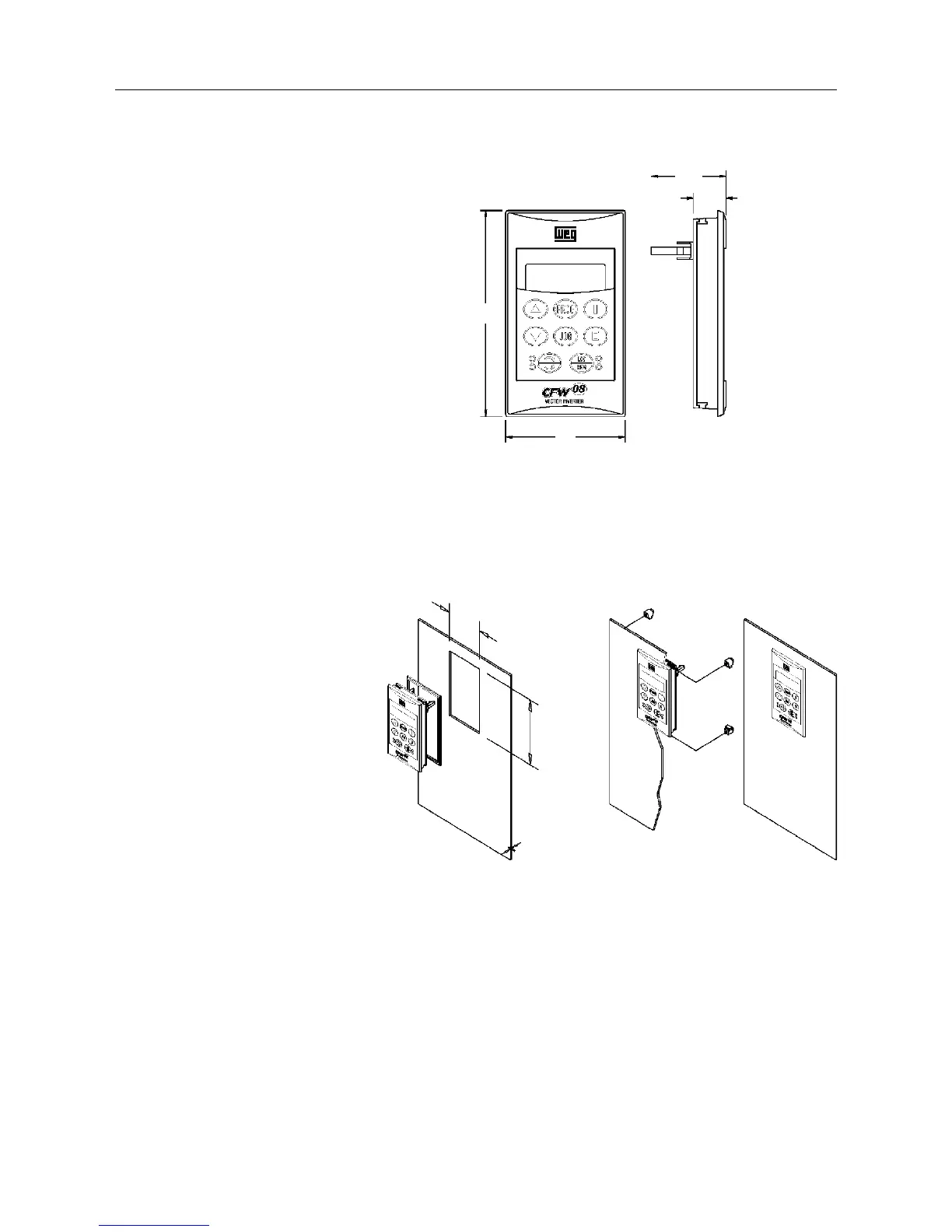

Figure 8.4 - Dimensions of the HMI-CFW08-RP
8.3.1 HMI-CFW08-RP
Installation
The HMI-CFW08-RP can be installed directly on the panel door (0,12in),
as shown in the figures below:
Figure 8.5 - Installation of the HMI-CFW08-RP
8.4 MIP-CFW08-RP
Isolation interface: Isolation interface installed in the inverter instead of
the standard keypad only when the remote parallel keypad (HMI-CFW08-
RP) is used.
The procedures for insertion and removing of the MIP-CFW08-RP are
similar to those shown in figure 8.13 for the KCS-CFW08 module.
58
98
15.9
36.3
52mm
(2.05in)
92mm
(3.62in)
Max. 3mm
(0.12in)
