CFW-08 OPTIONS AND ACCESSORIES
Name
FIL1
FIL2
FIL4
FEX1-CFW08
FEX2-CFW08
FS6007-16-06
FN3258-7-45
FS6007-25-08
FS6007-36-08
FN3258-16-45
FN3258-30-47
TOR1-CFW08
TOR2-CFW08
Function
Internal class A suppressor filter RFI - A - 7.3A/200-240V
Internal class A suppressor filter RFI- A - 2.7-4.3-6.5-10A/380-
480V
Internal class A suppressor filter - RFI - 13-16A/380-480V
10A/200-240V class A RFI filter - footprint
5A/380-480V class A RFI filter - footprint
External class B suppressor filter - RFI - 1.6-2.6-4.0A/
200-240V
External class B suppressor filter - RFI - 1.0-1.6-2.6-2.7-4.0-
4.3A/380-480V
External class B suppressor filter -
RFI - 7.3A/200-240V single-phase
External class B suppressor filter -
RFI - 10A/200-240V single-phase
External class B suppressor filter - RFI - 6.5-10-13A/380-480V
External class B suppressor filter - RFI - 16A/380-480V
CM choke toroid #1 (Thornton NT35/22/22-4100-IP12R) and
plastic clamp
CM choke toroid #2 (Thornton NT52/32/20-4400-IP12E)
Models to which
are applied
7.3-10A/200-240V
2.7-4.3-6.5-10A/
380-480V
13-16A/380-480V
1.6-2.6-4.0A/
200-240V
1.0-1.6-2.6-4.0A/
380-480V
1.6-2.6-4.0A/
200-240V
1.0-1.6-2.6-2.7-
4.0-4.3A/
380-480V
7.3A/200-240V
10A/200-240V
6.5-10-13A/
380-480V,
7A/200-240V,
7.3-10A/200-240V
three-phase
16A/200-240V;
16A/380-480V
2.7-4.3-6.5-10A/
380-480V
2.7-4.3-6.5-10-
13-16A/380-480V
WEG
Item Number
4151.2661
4151.0994
4151.2148
41718238
41718239
0208.2072
0208.2075
0208.2073
0208.2074
0208.2076
0208.2077
417100895
417100896

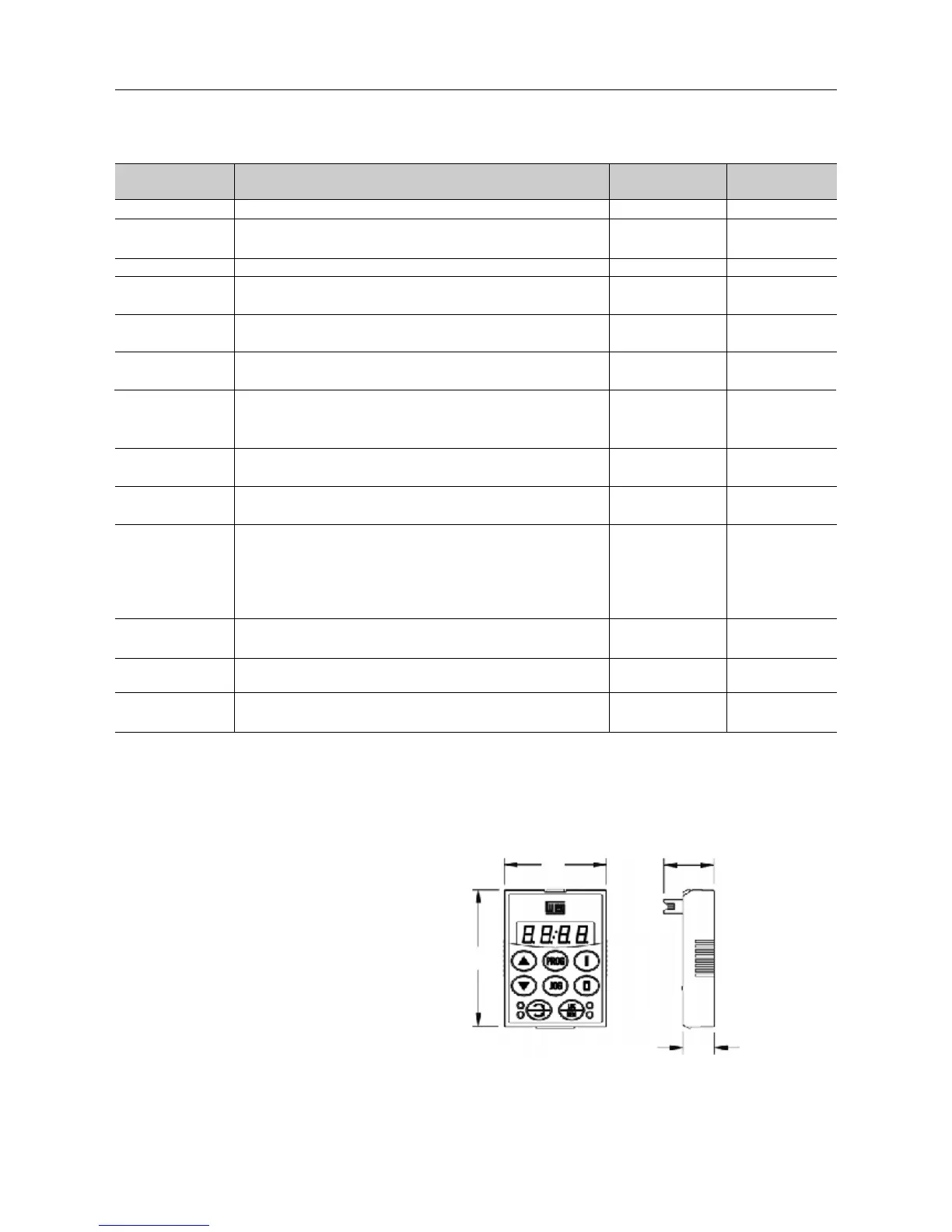

Table 8.1 - Available Optional Devices for the CFW-08
8.1 HMI-CFW08-P
Parallel keypad (HMI): is the keypad that is mounted at the front side of
the inverter.
Figure 8.1 - Dimensions of the parallel HMI - HMI-CFW08-P
57
43
21
13

WEG CFW08 Vector inverter Plus Specifications

General

Frequency	50/60 Hz
Output Frequency	0-400 Hz
Overload Capacity	150% for 60 seconds
Protection Degree	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Braking	Dynamic braking (with optional braking resistor)
Communication Interface	RS-485 (Modbus RTU)
Ambient Temperature	-10°C to +50°C
Humidity	5 to 95% non-condensing
Cooling Method	Fan Cooled
Dimensions	Varies depending on model (refer to specific model datasheet)
Power Range	0.75-15 kW
Input Voltage	200-240V AC
Storage Temperature	-25°C to 65°C (-13°F to 149°F)
