CFW-08 OPTIONS AND ACCESSORIES
8.5 CAB-HMI08-RP-1
CAB-HMI08-RP-2
CAB-HMI08-RP-3
CAB-HMI08-RP-5
CAB-HMI08-RP-7.5
CAB-HMI08-RP-10
Cables used to connect the inverter to the external parallel interface keypad
(HMI-CFW08-RP).
There are 6 cables options ranging in lenghts from 1m (39in) to 10m
(394in). The user must select among these lenghts according to his
requirement.
The cable CAB-HMI08-RP must be laid separately from the power wiring
by meeting the requirements for the control wiring (refer to item 3.2.4).
Figure 8.7 - CAB-CFW08-RP
8.6 HMI-CFW08-RS

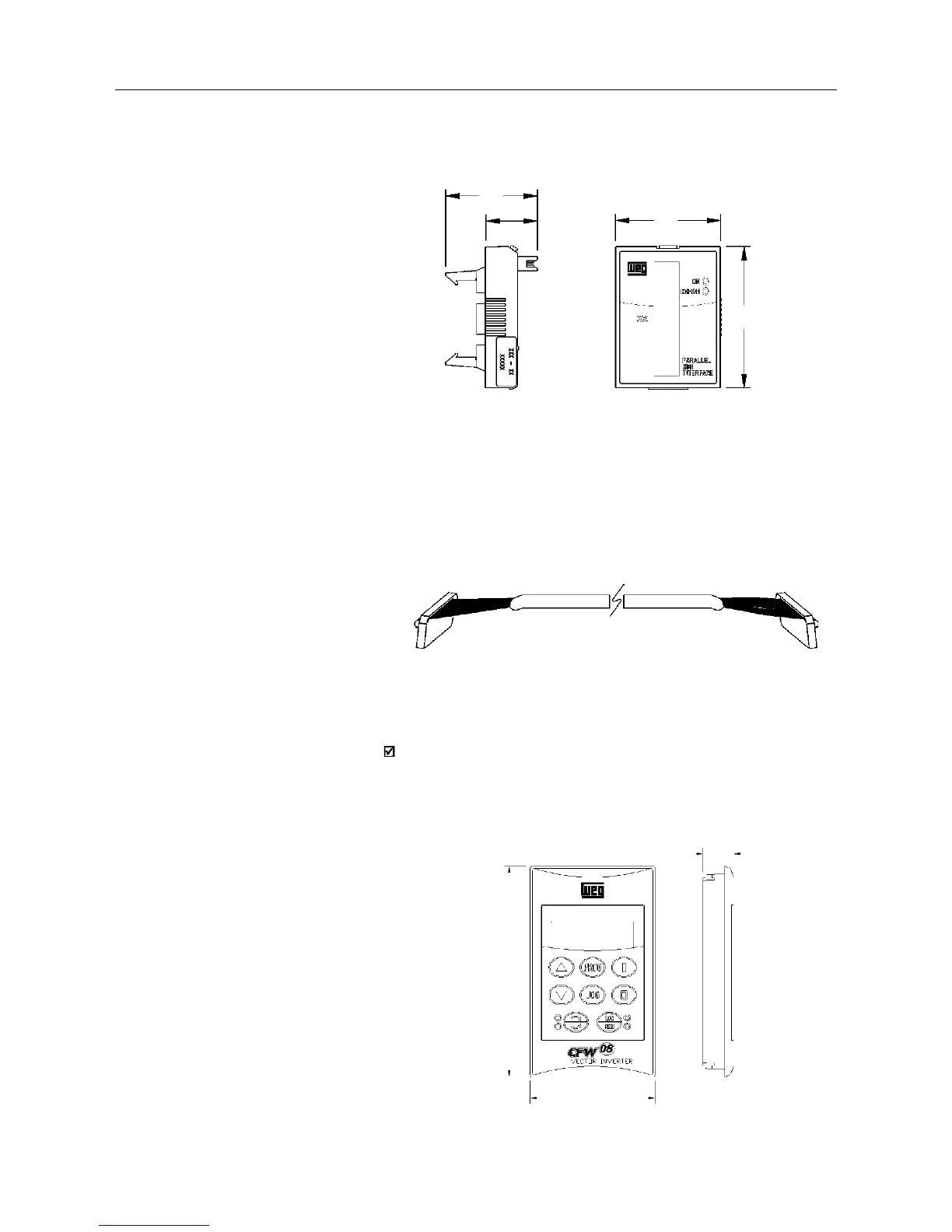

Figure 8.6 - Dimensions of the MIP-CFW08-RP
43
21
37
57
LATERAL VIEW FRONT VIEW
Figure 8.8 - Dimensions of the HMI-CFW08-RS
External serial keypad: this interface is mounted external to the inver-
ter and must be used when the copy function is needed:
For more details about copy function refer to the description of the
parameter P215 in section 6.
It operates with the MIS-CFW08-RS and the cable CAB-RS-X, which
length must be chosen according to the needs (up to 10m).
58
15.9
98

WEG CFW08 Vector inverter Plus Specifications

General

Frequency	50/60 Hz
Output Frequency	0-400 Hz
Overload Capacity	150% for 60 seconds
Protection Degree	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Braking	Dynamic braking (with optional braking resistor)
Communication Interface	RS-485 (Modbus RTU)
Ambient Temperature	-10°C to +50°C
Humidity	5 to 95% non-condensing
Cooling Method	Fan Cooled
Dimensions	Varies depending on model (refer to specific model datasheet)
Power Range	0.75-15 kW
Input Voltage	200-240V AC
Storage Temperature	-25°C to 65°C (-13°F to 149°F)
