CFW-08 OPTIONS AND ACCESSORIES
This kit must be used when a better access to the screw hole of the
inverter is needed. Models that used this kit:
KFIX-CFW08-M1
1,6 - 2,6 - 4,0 - 7,0A/200-240V; 1,0 - 1,6 - 2,6 - 4,0A/380-480V
KFIX-CFW08-M2
7,3 - 10 - 16A/200-240V; 2,7 - 4,3 - 6,5 - 10A/380-480V
8.12 KFIX-CFW08-M1
KFIX-CFW08-M2

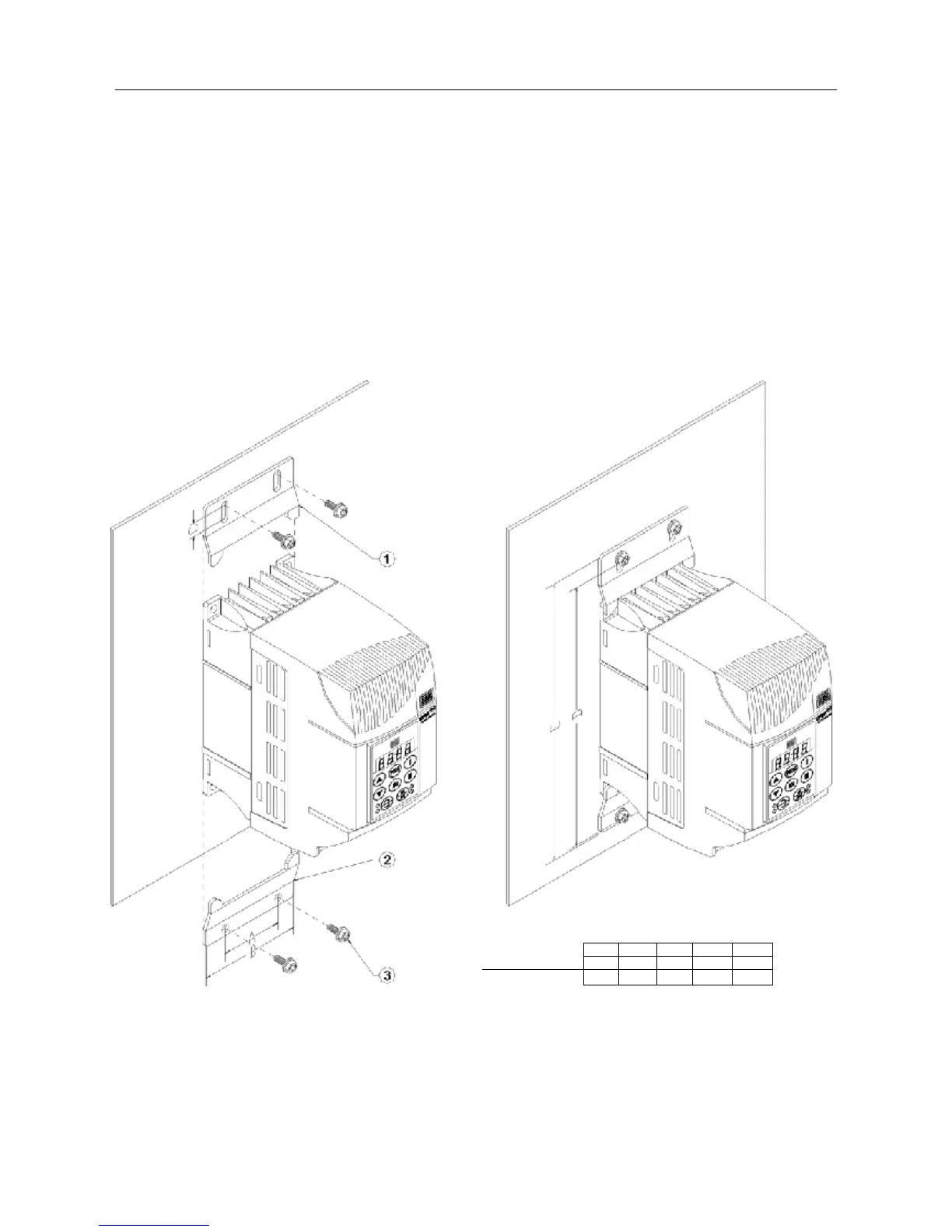

Figura 8.16 - Dimensions of the inverter with the kit
(KFIX-CFW08-MX)
Dimensions (mm)
ABCD E
50 75 8 180 190
80 115 8 228 238
KFIX-CFW08-M1
KFIX-CFW08-M2
