36
INSTALLATION AND CONNECTION

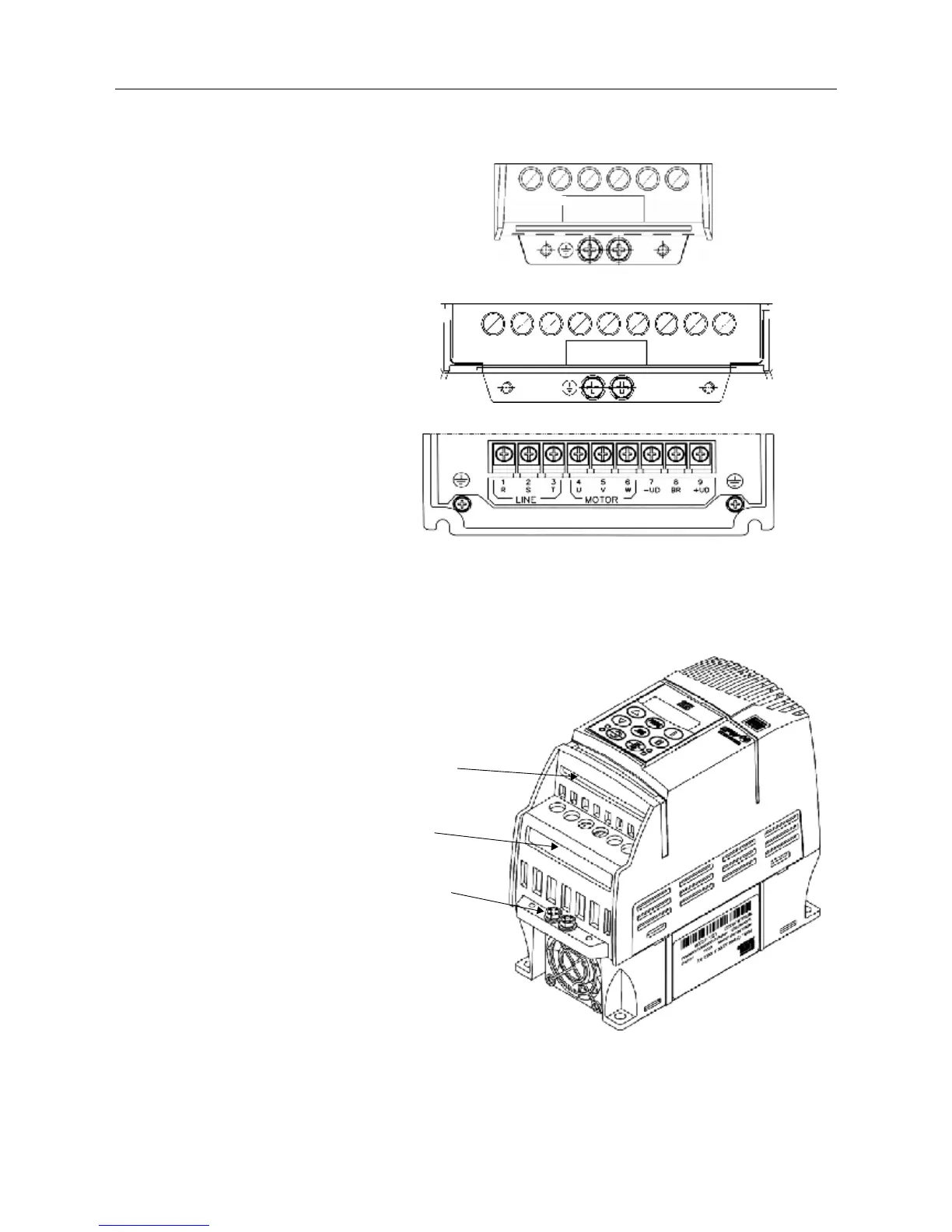

3.2.3 Location of the Power,
Grounding and Control
Connections
(a) Models 1.6-2.6-4.0-7.0-7.3-10-16A/200-240V and 1.0-1.6-26-2.7-40-
4.3-65-10A/380-480V
Control (XC1)
Power
Grounding
(b) models 7.3-10-16A/200-240V and 2.7-4.3-6.5-10A/380-480V
UVW
-Ud BR +Ud
(a) models 1.6-2.6-4.0-7.0A/200-240V and 1.0-1.6-2.6-4.0A/380-480V
L3 U V W
L/L1
Figure 3.6 - Power terminals
(c) models 13-16A/380-480V
N/L2
L3L/L1
N/L2
