48
INSTALLATION AND CONNECTION

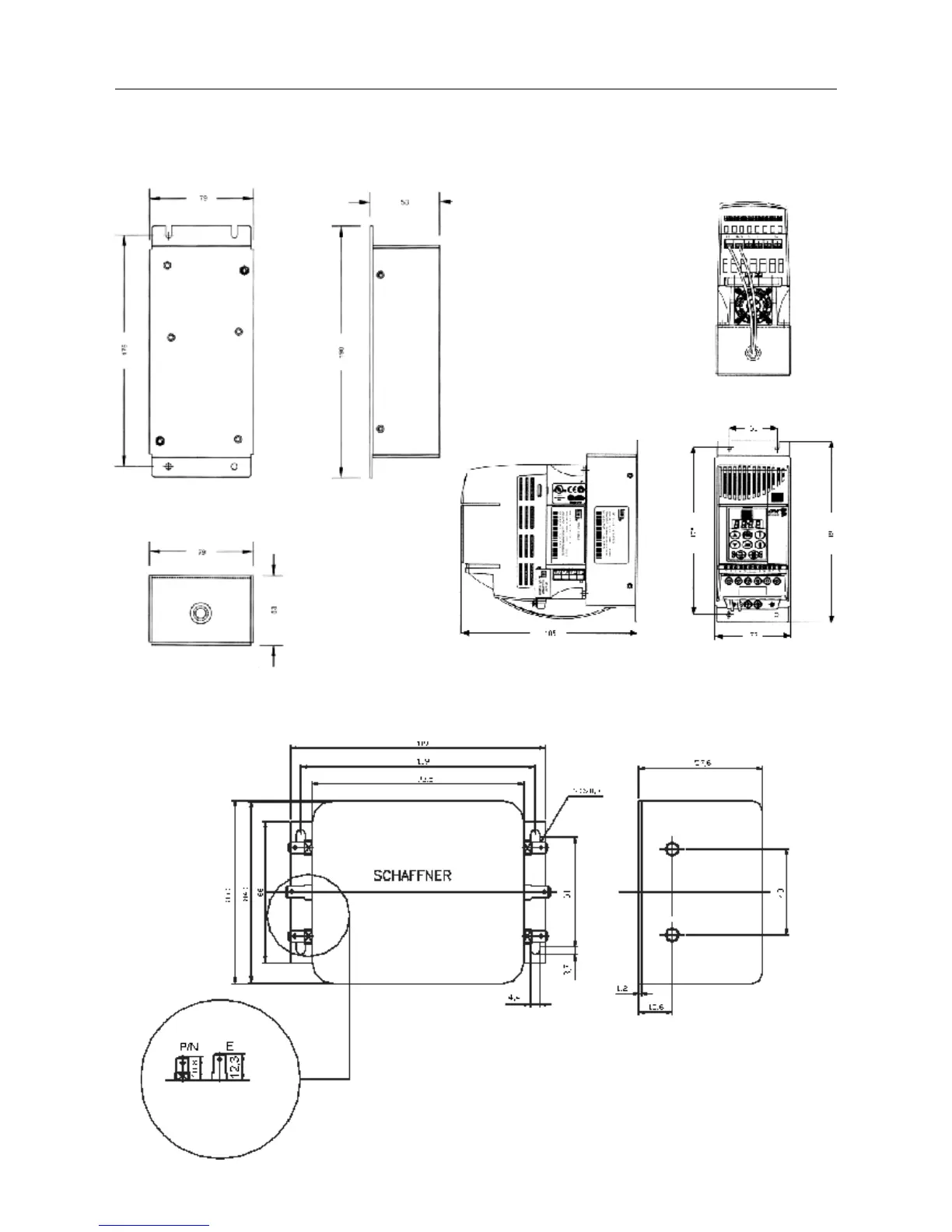

Figure 3.17 - FS6007-16-06 external filter drawing
Figure 3.16 - FEX1-CFW08 and FEX2-CFW08 footprint filter drawing
Front View Lateral Right View
Bottom View
Terminal block for
flexible and rigid cable
of 4mm
2
or AWG 10.
Max. torque: 0.8Nm
(a) Footprint Filter (b) Footprint Filter and Inverter
Bottom View
Front ViewLateral Right View
Type /05
Fast-on terminal 6.3 x 0.8mm
