111
OPTIONAL
FAULT
EMERGENCY
EXTERNAL
ERROR
OPTIONAL
APPENDIX
9

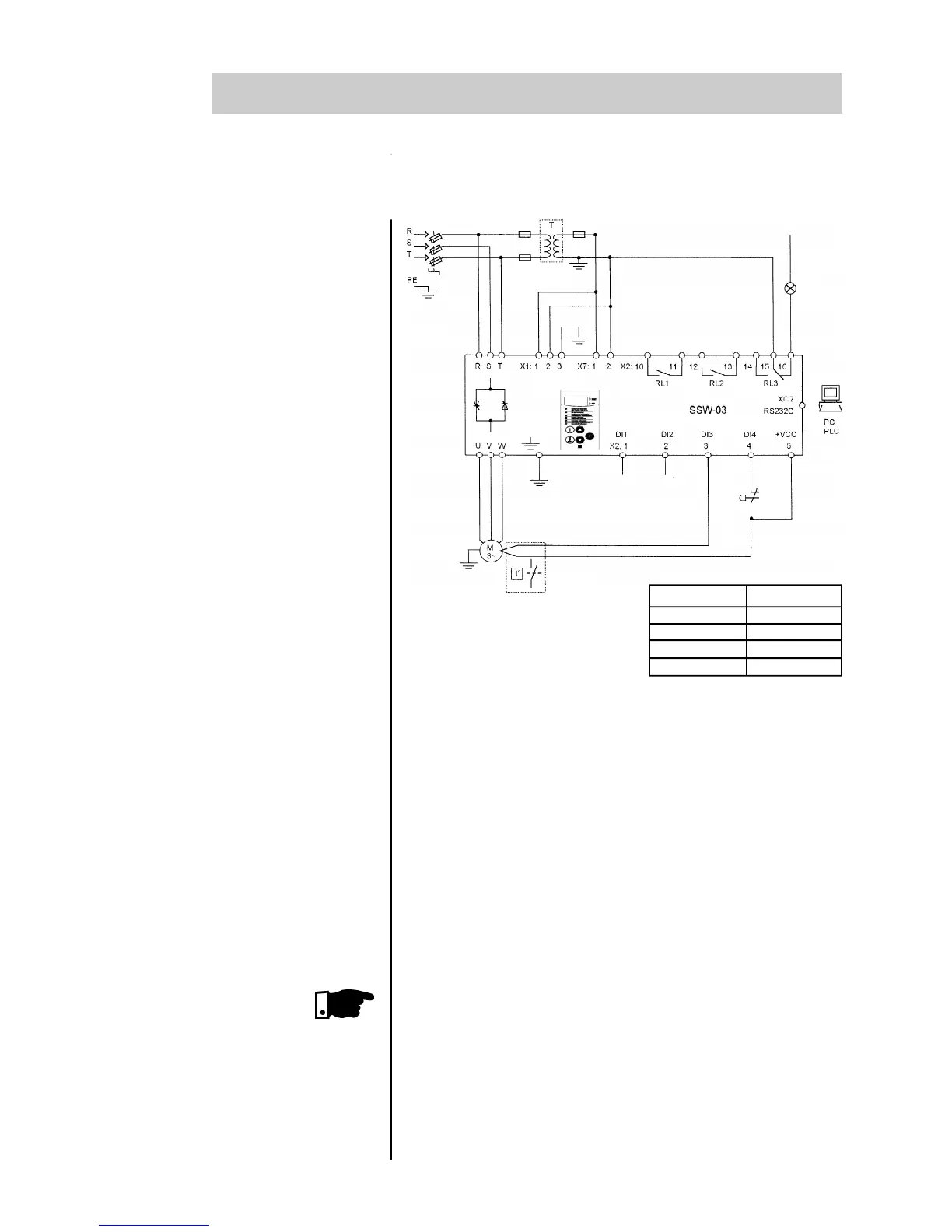

9.8 - RECOMMENDED APPLICATION WITH PC OR PLC COMMAND
Obs.: It's necessary to use normal fuses or breaker to protect
the installation. Ultra-Fast fuses are not necessary for
the SSW-03 Plus operation, but they are recommended
for SCR protection.
The transformer "T" is optional and must be utilized
when the line voltage is different than the electronics
and fan voltage.
For the integral motor protection it's recommended to
install one or more thermostats in the motor. If the ther-
mostat is not used, the external input error (DI3) from
SSW-03 Plus must be connected to +Vdc.
NOTE!
A contactor in the mains input (see 9.4) is necessary to pro-
tect the motor in case there is a phase failure which is caused
by damage in the SSW-03 Plus power circuit.
Connect the PC or PLC to control board via connector XC2 (RS
232C).
Parameter Program
P54 2
P55 3
P61 ON
P62 ADDRESS
PLUS
