46
POWER-UP/COMMISSIONING
4

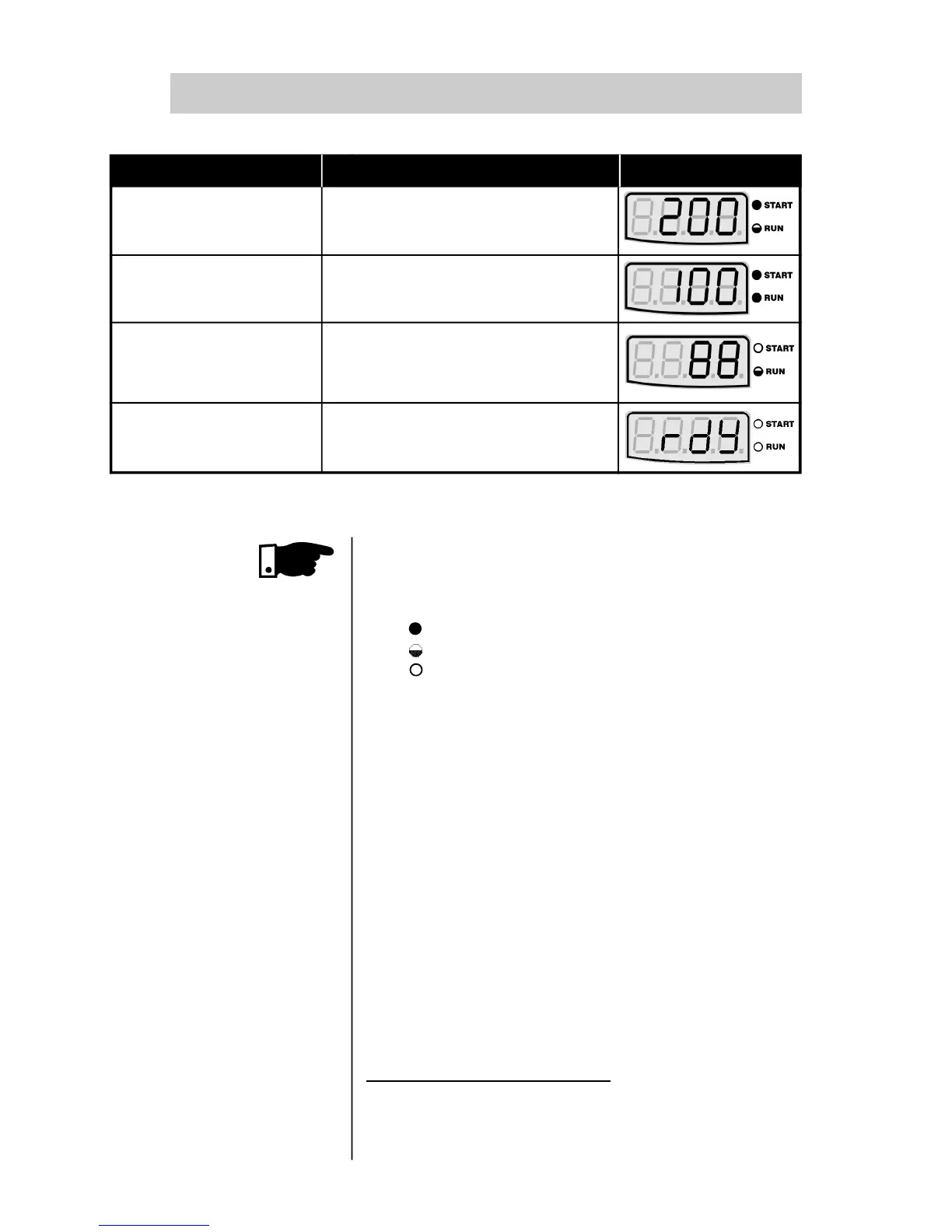

ACTION RESULT INDICATION
Close X2:1-5
After starting time has been
Motor starts
Switch Off by ramp provided P04
is set by parameters.
P04 = 20s; P03 = 80%
Open X2:1-5
Soft-Starter is powered up.
NOTES:
1) Symbol of the LEDs Start/Run
LED ON
LED Flashing
LED OFF
2) If the direction of rotation of the motor is not correct,
switch OFF the Soft-Starter and change two output
cables of the Soft-Starter.
4.4 - SETTINGS
DURING THE
COMMISSIONING
Although the factory standard parameters are chosen in such
a way to meet most application conditions, even so it may be
necessary to make some parameters settings during the
commissioning.
Follow the Parameter Quick Reference Table, checking the
need to set each of the parameters.
Make the setting according to the specific application and
record the last value in the corresponding column for the
User's Setting.
These remarks can be important to clear up any questions.
Minimum Parameters to be set
P11 - Current Limitation:
Select the current limitation during the starting Standard:
OFF (inactive)
