DETAILED PARAMETER DESCRIPTION

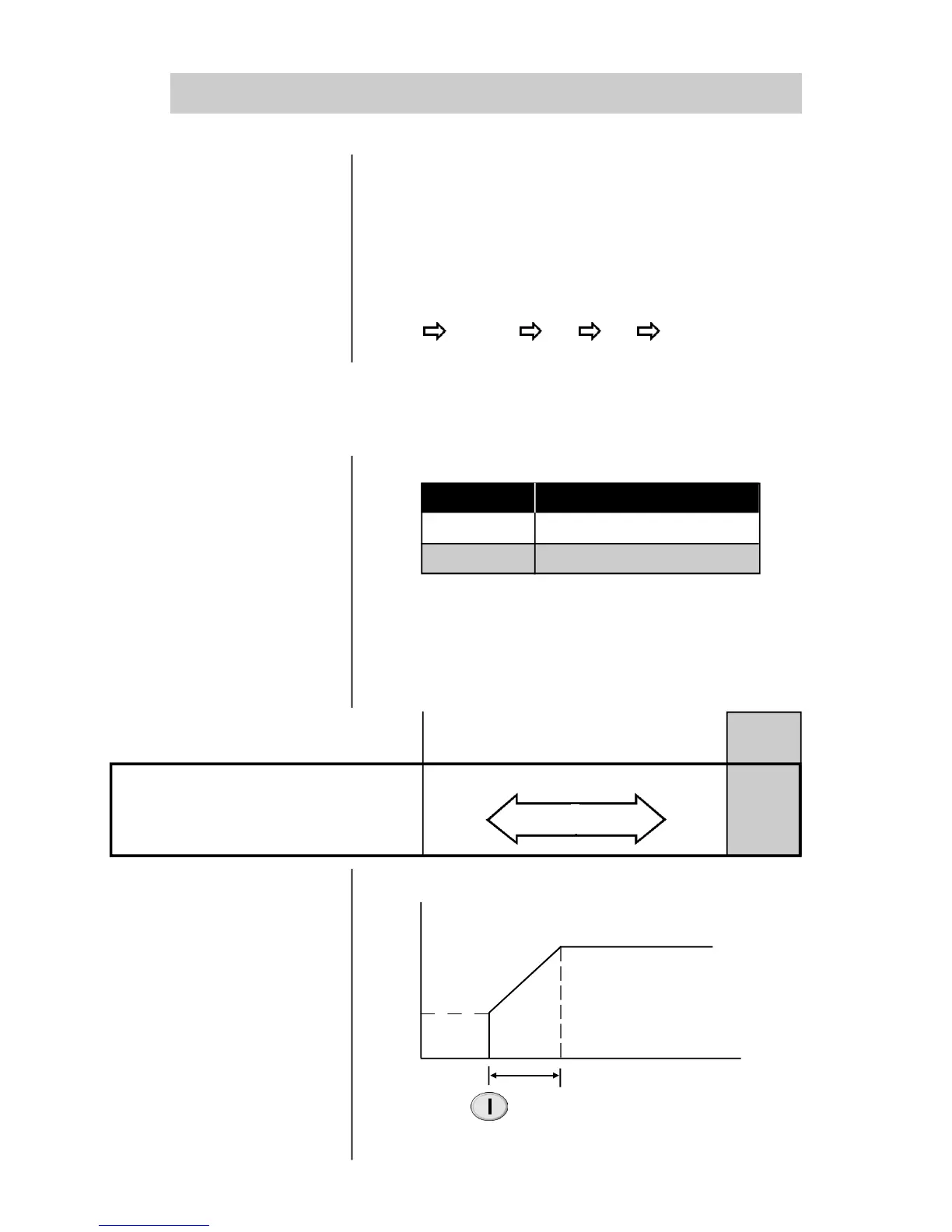

Figure 6.1- Acceleration Ramp
UN
t (s)
P01
Pressing
Key
P02
P01 - Initial Voltage
min. Range max.
shortest step
25%UN 1% 90%UN
Factory
Standard
30
6.2.9 - Last errors
P96 - Last hardware error
P97 - Second hardware error
P98 - Third hardware error
P99 - Fourth hardware error
They indicate the codes of the last, second, third and fourth
error. The register indicates the last 4 Soft-Starter errors or
faults.
Register systematic:
EXX P96 P97 P98 P99 The former
content of P99 is lost
6.3 - REGULATION PARAMETERS - P00... P15, P22...P42, P45, P47
6.3.1 - P00-Parameter
access
It releases the access to change the parameters.
6.3.2 - P01- Initial
Voltage (% UN)
It adjusts the initial voltage value (%UN) which will be
applied to the motor according to Figure 6.1.
Reading of Parameter
Changing of Parameter
OFF
ON
P00 ACCESS
This parameter must be set at the minimum value that
starts the motor.
