USE OF THE HMI
5
This Section describes the Human-Machine Interface (HMI-
3P) and the programming mode of the Soft-Starter, providing
the following information:
General description of the HMI-3P
Use of the HMI-3P
SSW-03 Plus Parameter Organization
Access to the parameters of the Soft-Starter
Parameter changing (programming)
Description of the Status and Signalling Indications
5.1 - DESCRIPTION OF
THE HMI-3P IN-
TERFACE

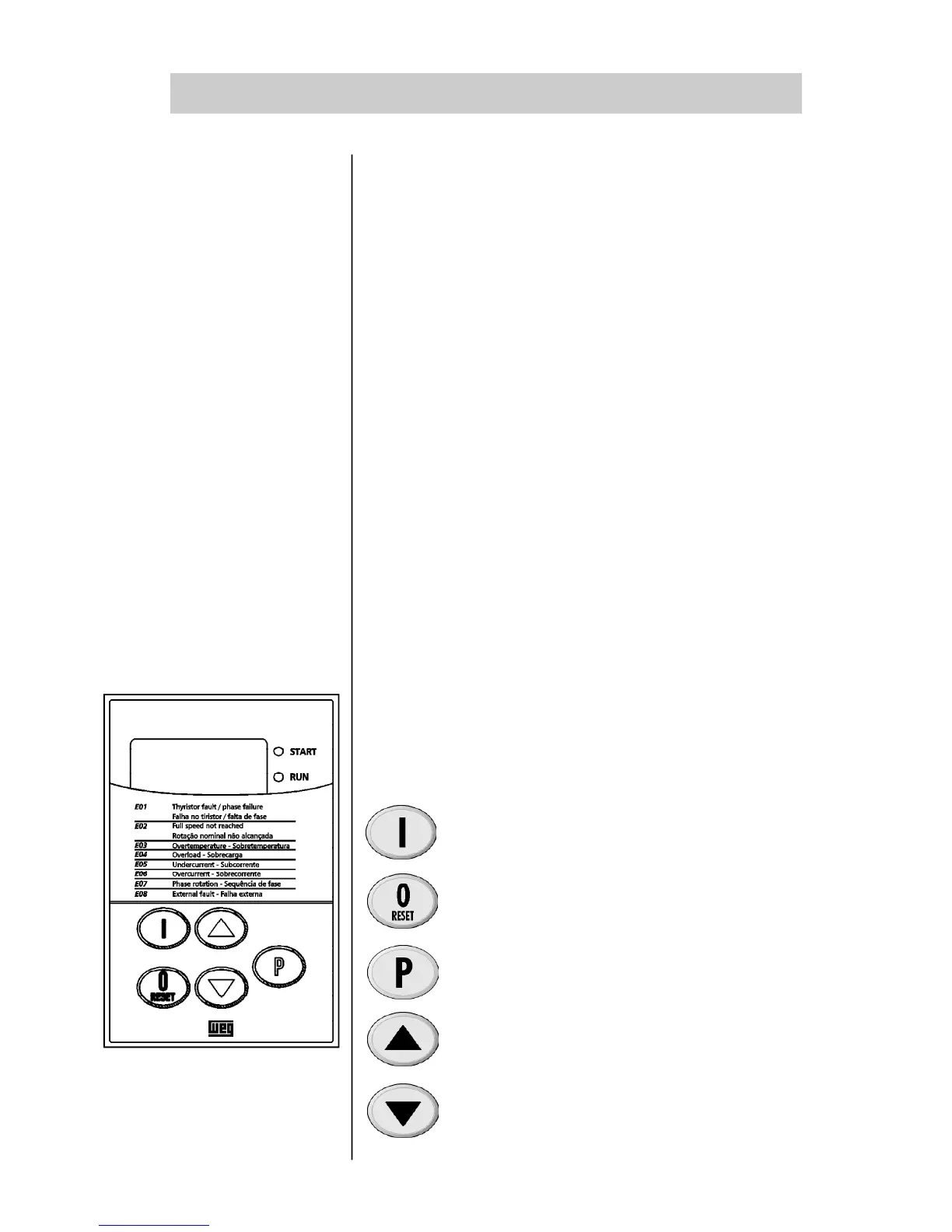

The HMI-3P consists in 4 digits, seven segment LED display, 2
signalling LEDs and 5 keys. Figure 5.1 describes the HMI-3P.
Figure 5.1 - HMI-3P
Description
START Indicates that the Soft-Starter has received a
start or stop command. (motor driven)
RUN Indicates the switch status; if at acceleration /
deceleration ramp or at rated voltage.
Decrements the number of the parameter or its
value.
Increments the number of the parameter or its
value.
Changes display between the parameter
number and its value.
Disables the Soft-Starter via ramp (when
programmed). Resets the Soft-Starter after an
error has accured.
Enables motor via ramp.
