20
INSTALLATION
3
Install the Soft-Starter in Vertical Position:
Allow for free space around the SSW-03 Plus, as shown in
Figure 3.1.
Install the Soft-Starter on a flat surface.
External dimensions, fastenings drillings, etc. according to
Figure 3.2.
First install and partially tighten the mounting bolts, then
install the Soft-Starter and tighten the mounting bolts.
Provide independent conduits for physical separation for
signal conductors, control and power conductors (See
Electrical Installation).
3.1.2 - Location /
Mounting

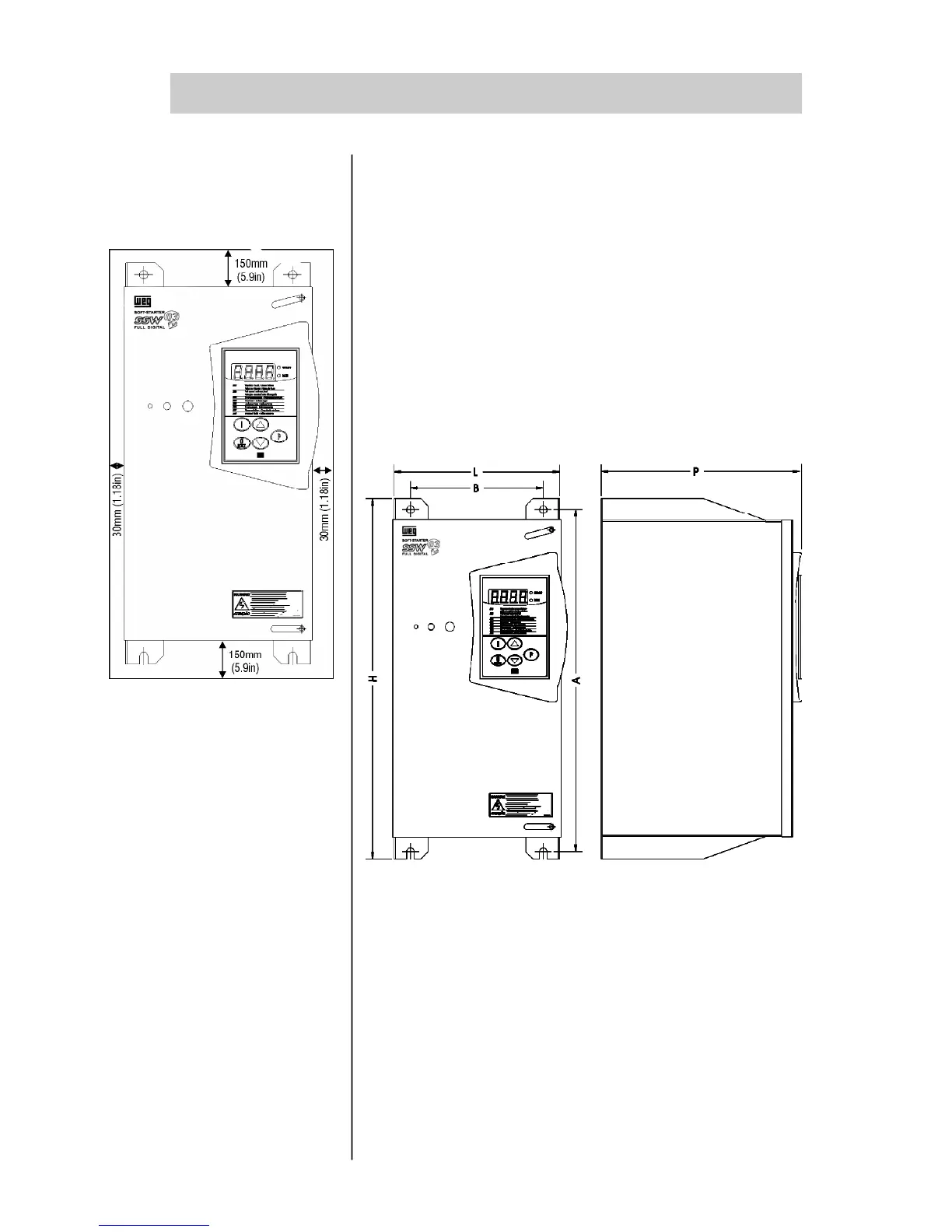

Figure 3.2 -
External dimensions for the SSW-03 Plus and
its screwing drillings
Figure 3.1 - Free space for
ventilation
