POWER-UP/COMMISSIONING
4
4.3.1 - Preparation
DANGER!
Even after disconnectiong the supply, high voltage can be
present.
Wait at least 3 minutes after switching OFF the equipment to
allow full discharge of the capacitors.
The Soft-Starter must be installed and powered up as
described in section 3 and 4.
The user must have read Section 5 and 6 and be acquainted
with the use of the HMI-3P and with the parameter
organization.
The user must also understand how to localize and to
change the parameters.
4.3.2 - Commissioning
and operation
via HMI-3P
Connections according to Figure 3.9.

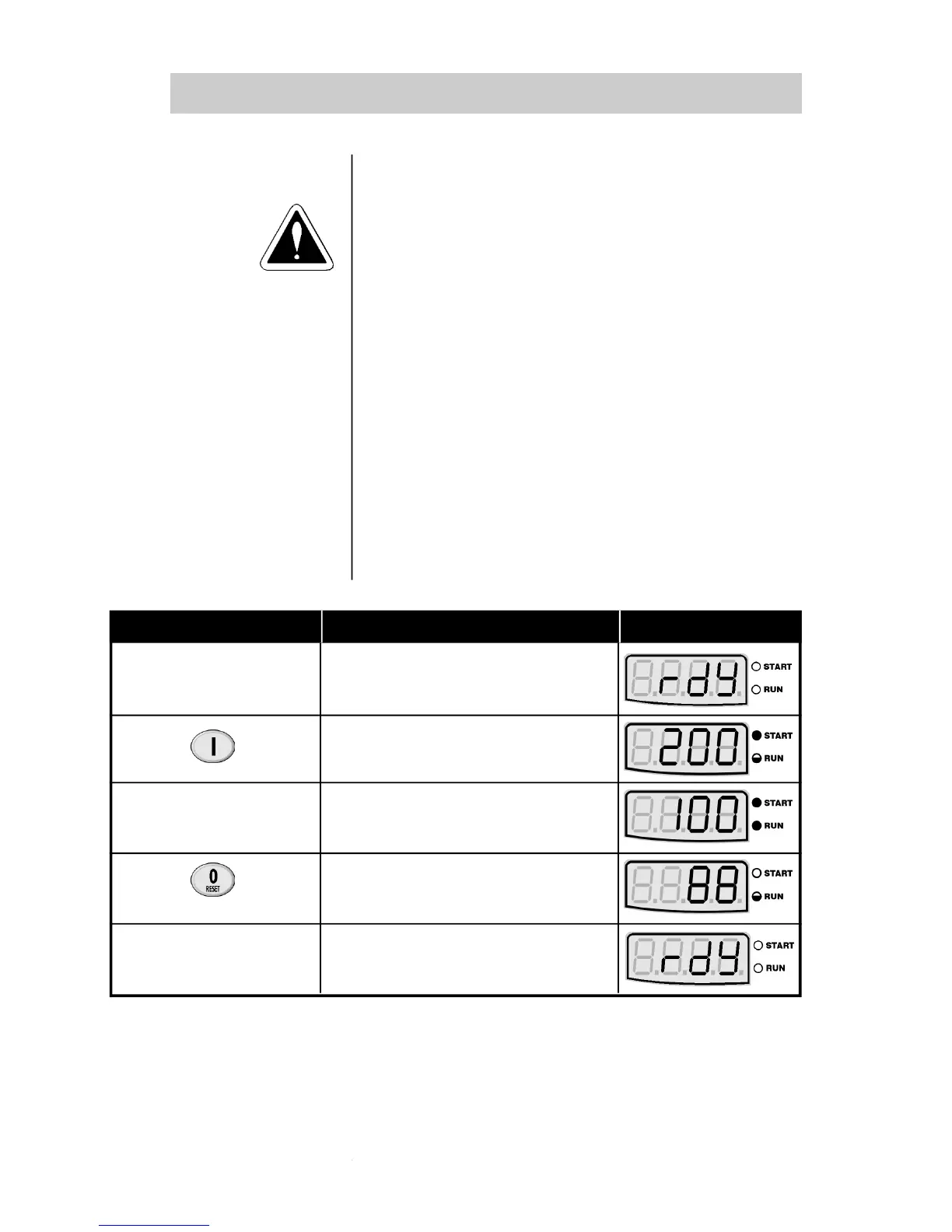

ACTION RESULT INDICATION
Soft-Starter powered-up
Motor starts
Press
After starting time has been
Press
Soft-Starter energized
Switching Off by ramp provided
P04 is set by parameter
Ex: P04 = 20; P03 = 80
