POWER-UP/COMMISSIONING
4
4.2 - POWER-UP After the Soft-Starter has been prepared it can now be
powered-up:
1) Check the supply voltage:
Measure the line voltage and check if it is within the
permitted range (rated voltage + 10% / -15%).
2) Power-up the input and switch on the control voltage:
Close the input circuit breaker.
3) Check if the power-up has been succesful:

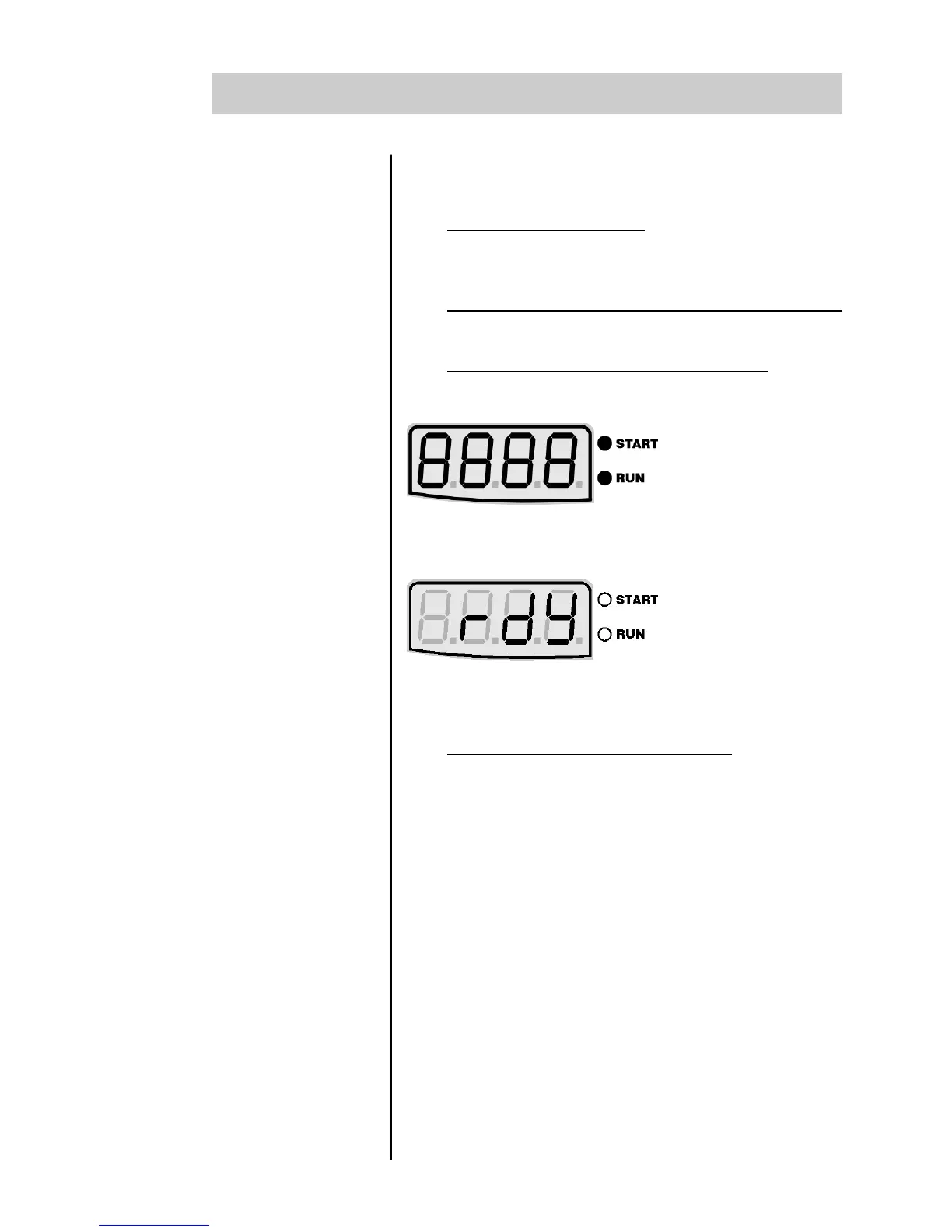

The HMI-3P display will show:
Now the Soft-Starter will run some self-diagnosis routines and
if there is no problem, the display will show:
This means that the Soft-Starter is rdy=ready to be
operated.
4) Follow the commissioning procedures
For combination drive "A" - Operation by HMI-3P - follow
Item 4.3.2.
For combination drive "B" - Operation by terminals -
follow Item 4.3.3.
For other configurations that require the change of
several parameters (different standards), read first
Chapter 6 - Detailed description of the parameters.
Parameter Content
P72 (%IN)
4.3 - COMMISSIONING
This Section describes the commissioning of the two
characteristic combination drives describe above:
Combination drive "A" - Operation through HMI-3P
Combination drive "B" - Operation through Terminals
