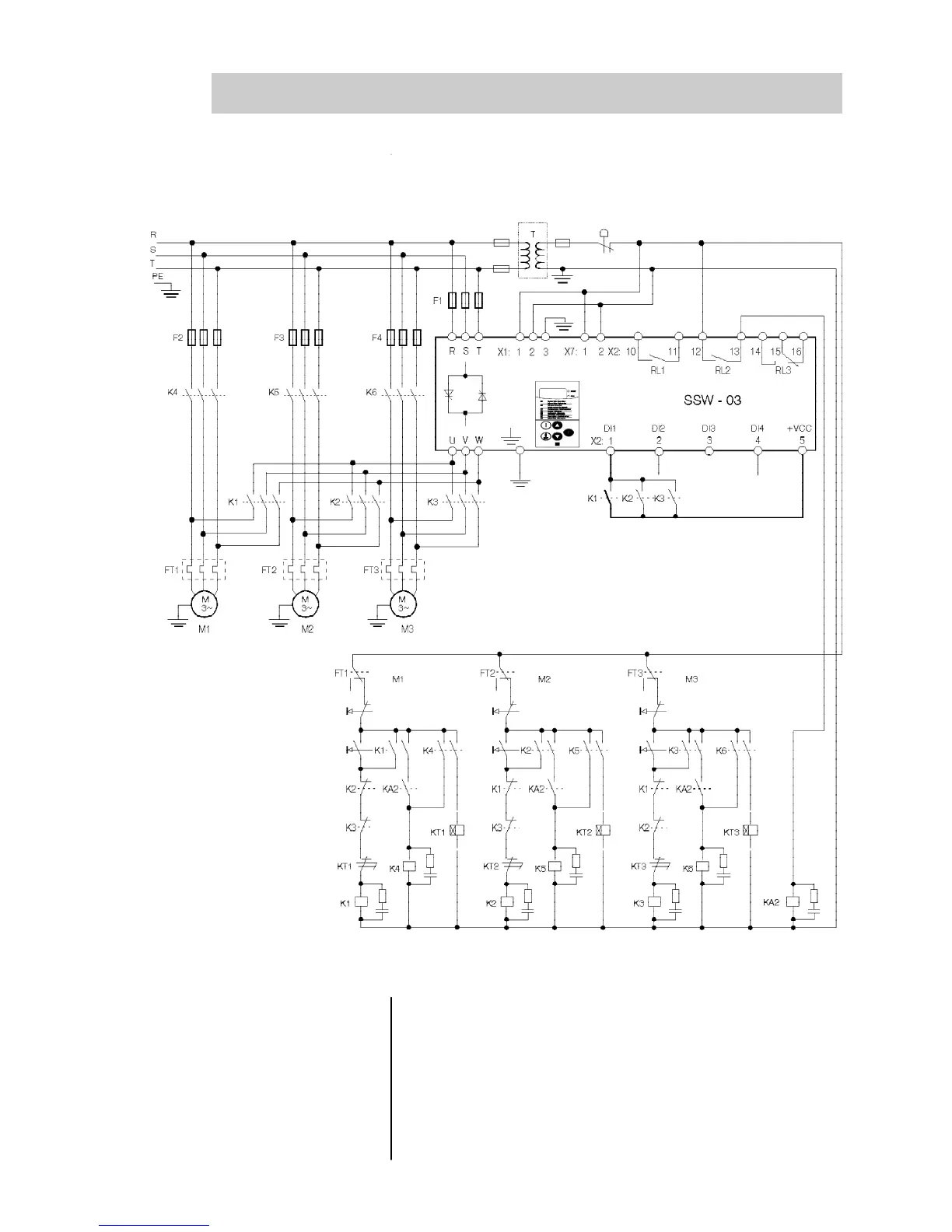

9.11 - RECOMMENDED APPLICATION WITH TERMINALS FOR THREE

WIRE CONTROL FOR SEVERAL MOTORS

Obs.: It's necessary to use normal fuses or breaker to protect

the installation. Ultra-Fast fuses are not necessary for

the SSW-03 operation, but they are recommended for

SCR protection.

The transformer "T" is optional and must be utilized

when the line voltage is different than the electronics

and fan voltage.

OPTIONAL

EMERGENCY

STOP

START

PLUS
