WEG SSW-03 Plus Series User Manual

45
POWER-UP/COMMISSIONING
4
4.3.3. - Commissioning
and Operation
via Terminals

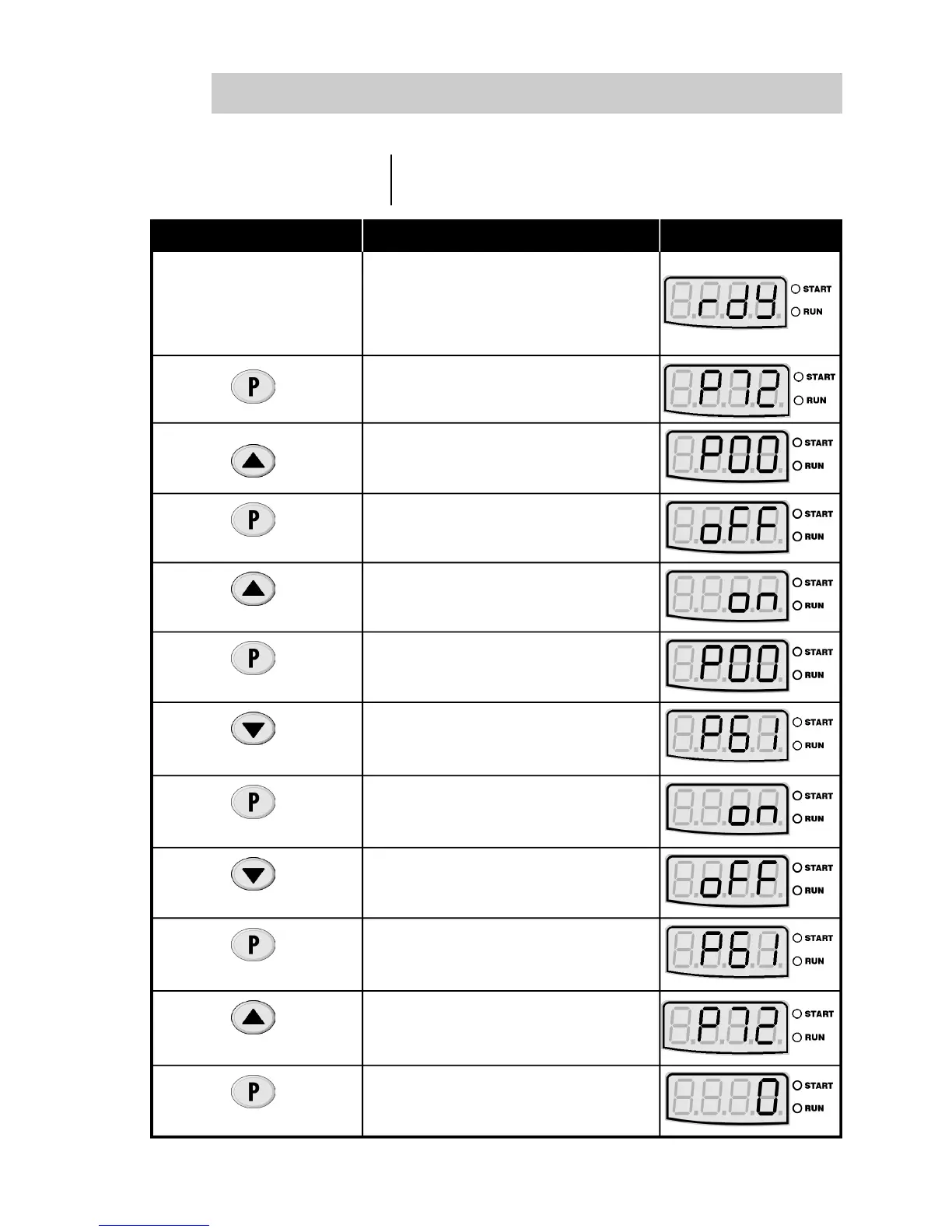

ACTION RESULT INDICATION
Connections according to figure 3.10.
Press
Press
Press
Press
Press
Press
To program operation via terminal
Press
Press
To change the parameters, it is
necessary to set P00 = ON
Soft-Starter realizes self-diagnosis.
Soft-Starter ready to be
programmed.
Power-up the driving
Start/Stop = open
It enables to change the
parameters
Press
Press
Reading parameter of the current
in percentage (%IN)
Press
Soft-Starter ready to be operated






It permits changing of
parameters

