When installed on the panel door, the following is
recommended:
temperature within the range of 0
0
C to 55
0
C (32°F to
131°F).
environment free of corrosive vapour, gas or liquids.
air free of dust or metallic particles.
Avoid to exposing the key pad to direct sunlight, rain or
moisture.
For mounting, see Figure 3.11.
86.5 (3.40)
132.5 (5.22)
132 (5.20)
138 (5.43)
E01 - Thyristor fault/phase failure
Falha no tiristor / falta de fase
E02 - Full speed not reached
Rotação nominal não alcançada
E03 - Overtemperature - Sobretemperatura
E04 - Overload - Sobrecarga
E05 - Undercurrent - Subcorrente
E06 - Overcurrent - Sobrecorrente
E07 - Phase rotation - Seqüência de fase
E08 - External fault - Falha externa

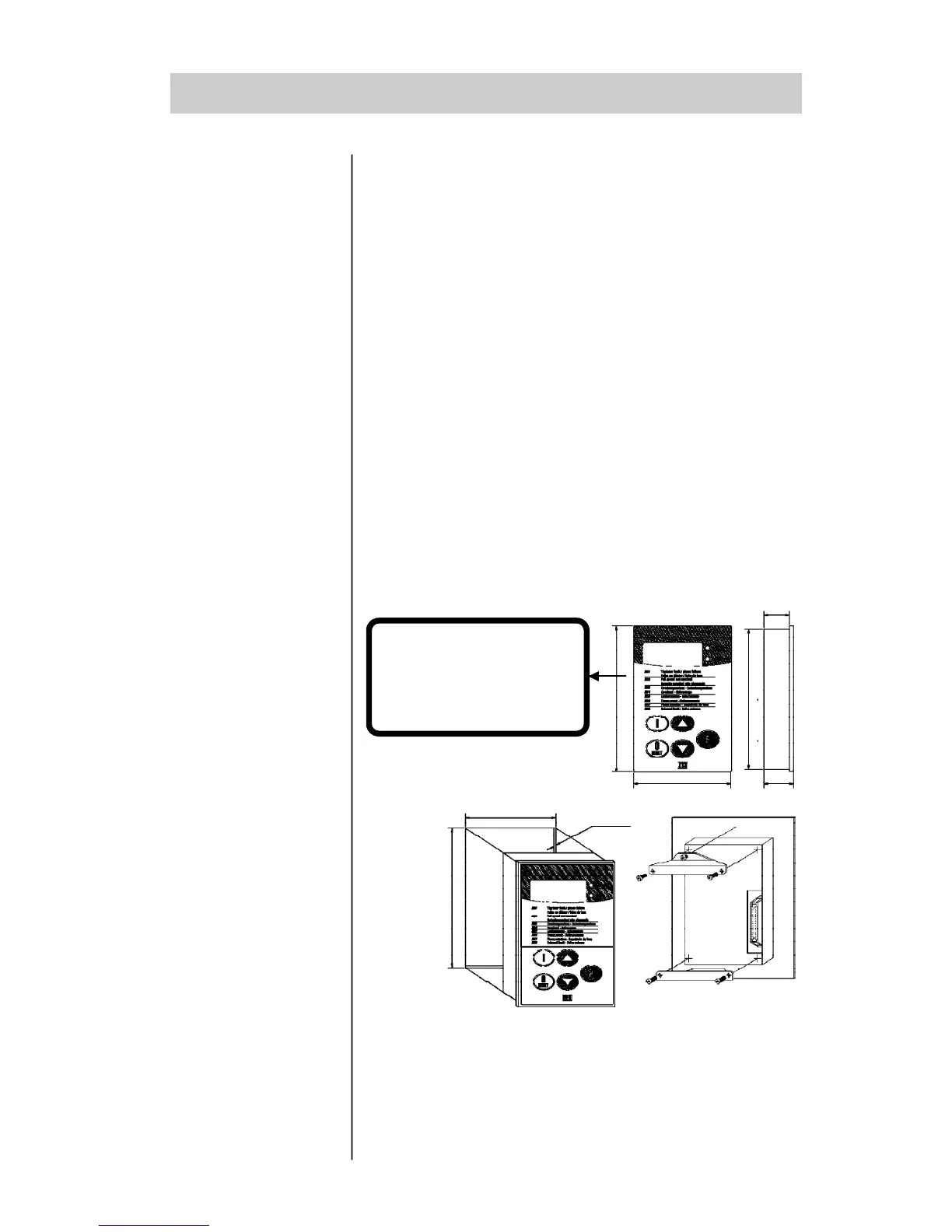

Figure 3.11 -
Dimensions/Fastening of the HMI-3P.
All dimensions in mm (inches)
3.3 - INSTALLATION
OF OPTIONAL
DEVICES
3.3.1 - HMI-3P ON THE
PANEL DOOR
3.3.1.1 - Mechanical
installation
24
(0.945)
26
(1.02)
92 (3.62)
MAX. THICKNESS
OF SHEET = 2MM
(0.078)
To Next Page
