18
2
INTRODUCTION
2.5 - PRODUCT
IDENTIFICATION
EXTERN HMI
HMI-3P.1: HMI with LEDs, 1 m (3.28ft) cable
HMI-3P.2: HMI with LEDs, 2 m (6.56ft) cable
HMI-3P.3: HMI with LEDs, 3 m (9.84ft) cable
2.6 - RECEIVING
Max. Cont.: It's the maximum current that the Soft-Starter can
have in continuous duty. For this current the Soft-Starter can
only have 1 start per hour.
The SSW-03 Plus is supplied in cardboard boxes up to 205A,
current sizes from 255 to 1400A are supplied in wood crates.

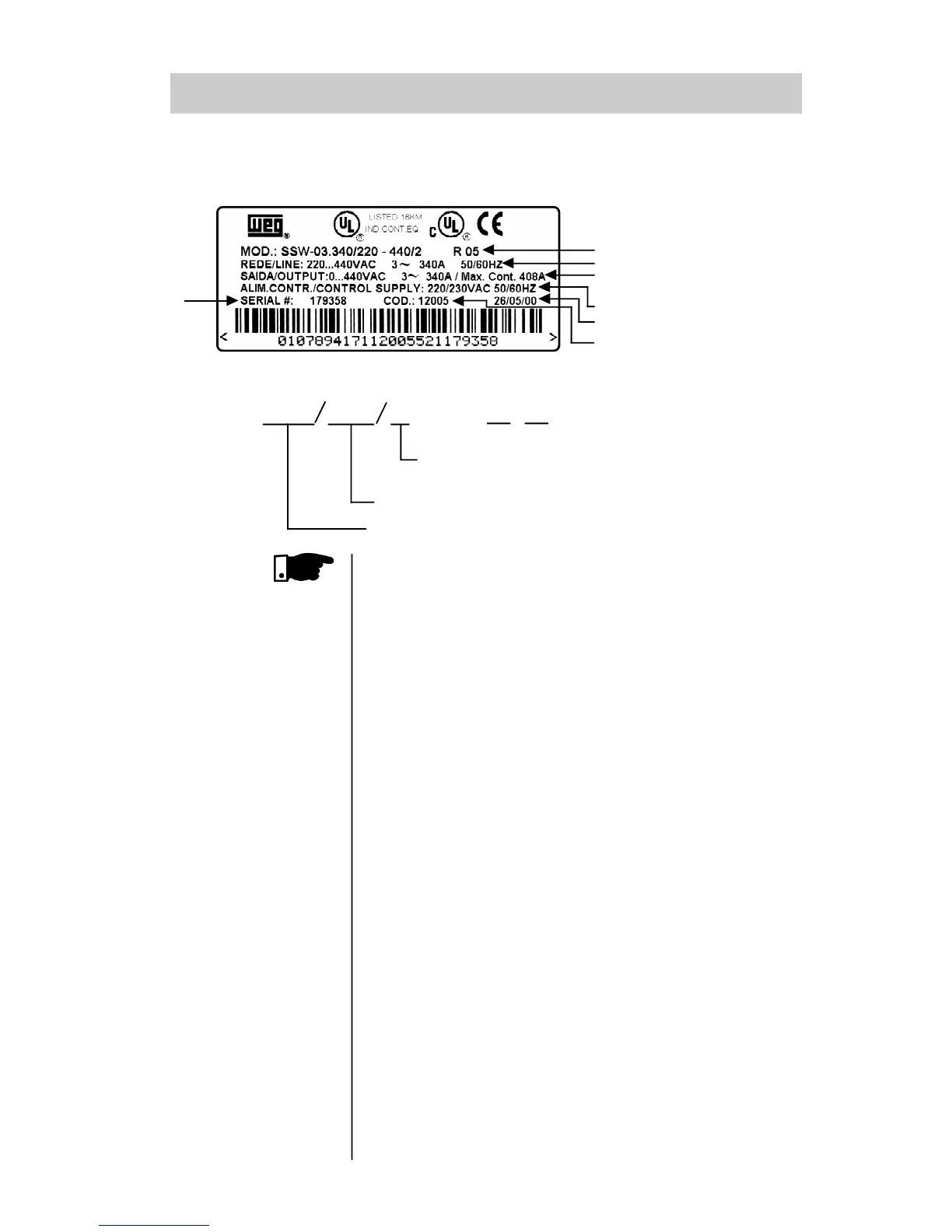

The outside of the packing container has a nameplate that is
the identical to that on the SSW-03 Plus. Please check if the
SSW-03 Plus is the one you ordered.
Open the box, remove the foam and then remove the SSW-03
Plus.
For sizes above 255 A, open the wooden crate on the floor,
remove the fastening bolts on the base and remove the SSW-
03 Plus with the aid of a hoist.
Check if:
SSW-03 Plus nameplate data matches the purchase order;
The equipment has not been damaged during transport.
If any problem is detected, contact the carrier immediately.
If the SSW-03 Plus is not to be installed immediately, store it
in a clean and dry room (Storage temperatures between -
25°C and 60°C). Cover it to prevent dust, dirt or other
contamination.
Rated output current (A)
Three-phase supply voltage (220 - 440, 460 - 575)
Options : + I with remote HMI
+
Voltage of the electronics
1- 110/120 V
2- 220/230 V
Soft-Starter Type
{
SSW-03
SERIAL NUMBER
WEG ITEM
FABRICATIONDATE
ELECTRONIC/FAN DATA
OUTPUT DATA/MAXIMUM CURRENTRATINGFOR
CONTINUOUS DUTY
INPUT DATA
SOFT-STARTER MODEL
- PL
- PL
