Operation
7.2 Steering the vehicle
106
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]

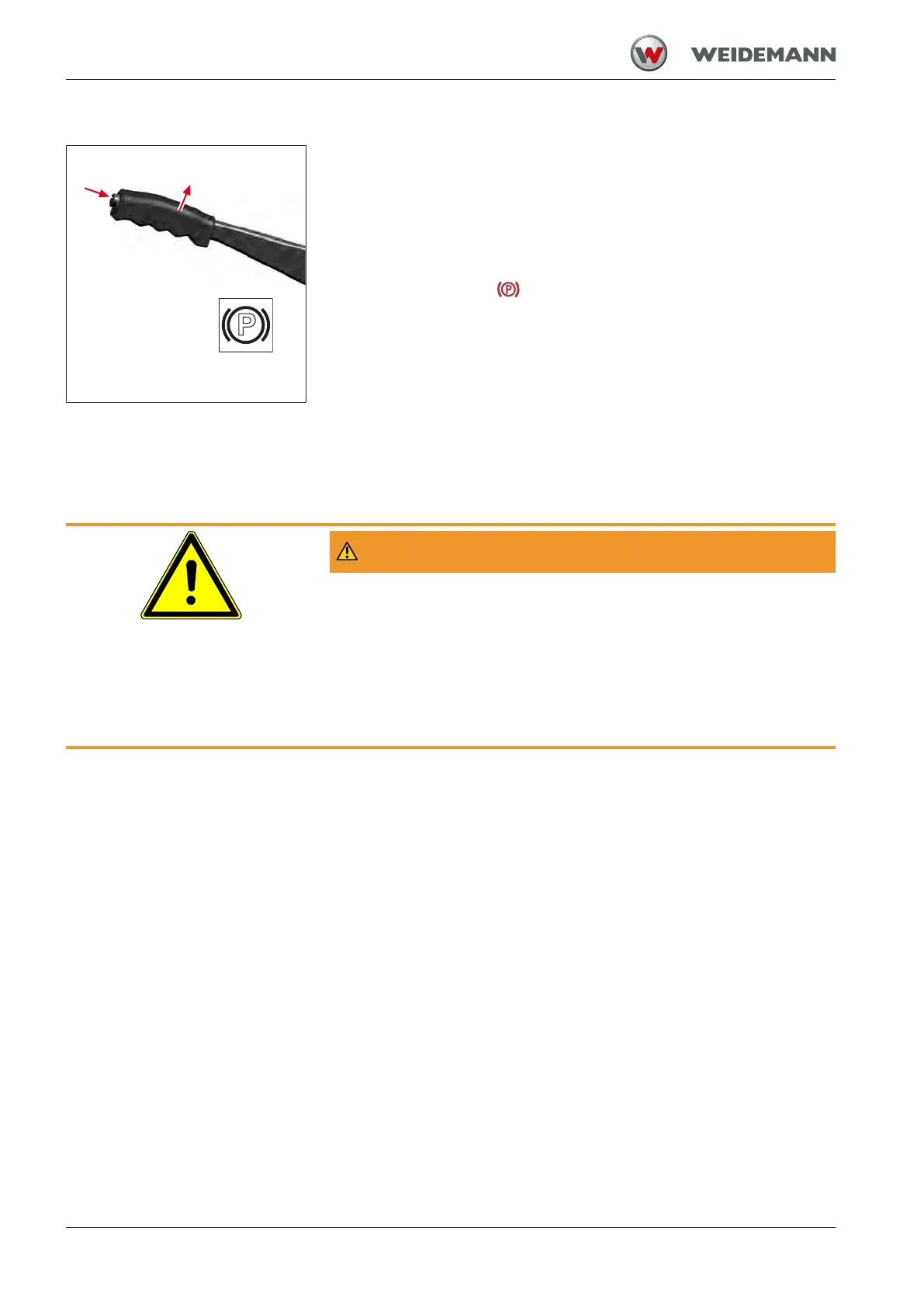

Fig.83: Control lever for the parking
brake
Release the parking brake
1. Pull the lever slightly upwards towards X and press button K with
your thumb.
ð Latch from lever is released.
2. Push the lever down completely.
ð The control light
goes out.
ð Parking brake is released.
7.2
Steering the vehicle
7.2.1
Steering modes
WARNING
Accident hazard due to steering system not working correctly!
Driving with a defective steering system can lead to accidents and injur-
ies or death.
► Check that the steering system is working before starting a journey.
► Do not drive the vehicle if the steering system is defective.
► Have the steering system that is not working correctly repaired by a
service center before continuing to drive the vehicle.
The vehicle has an articulated pendulum steering. The steering system is
controlled via the steering wheel. The steering wheel acts via a steering
column and a steering orbitrol on double-acting hydraulic cylinders.
▪ Turn the steering wheel to the left.
ð The vehicle articulates to the left.
ð The vehicle travels to the left.
▪ Turn steering wheel to the right.
ð The vehicle articulates to the right.
ð The vehicle travels to the right.
Emergency steering feature
The steering system is only operational when the engine is running nor-
mally.
The vehicle can still be steered if the diesel engine or the pump drive
breaks down. However, operating the steering system then requires
greater strength and the steering will only respond slowly. Take this into
account especially when towing the vehicle. Adjust the towing speed to
the changed steering behavior (walking pace)!
