Operating the heating, ventilation and air conditioning system
7.7.1
Operating heating
1

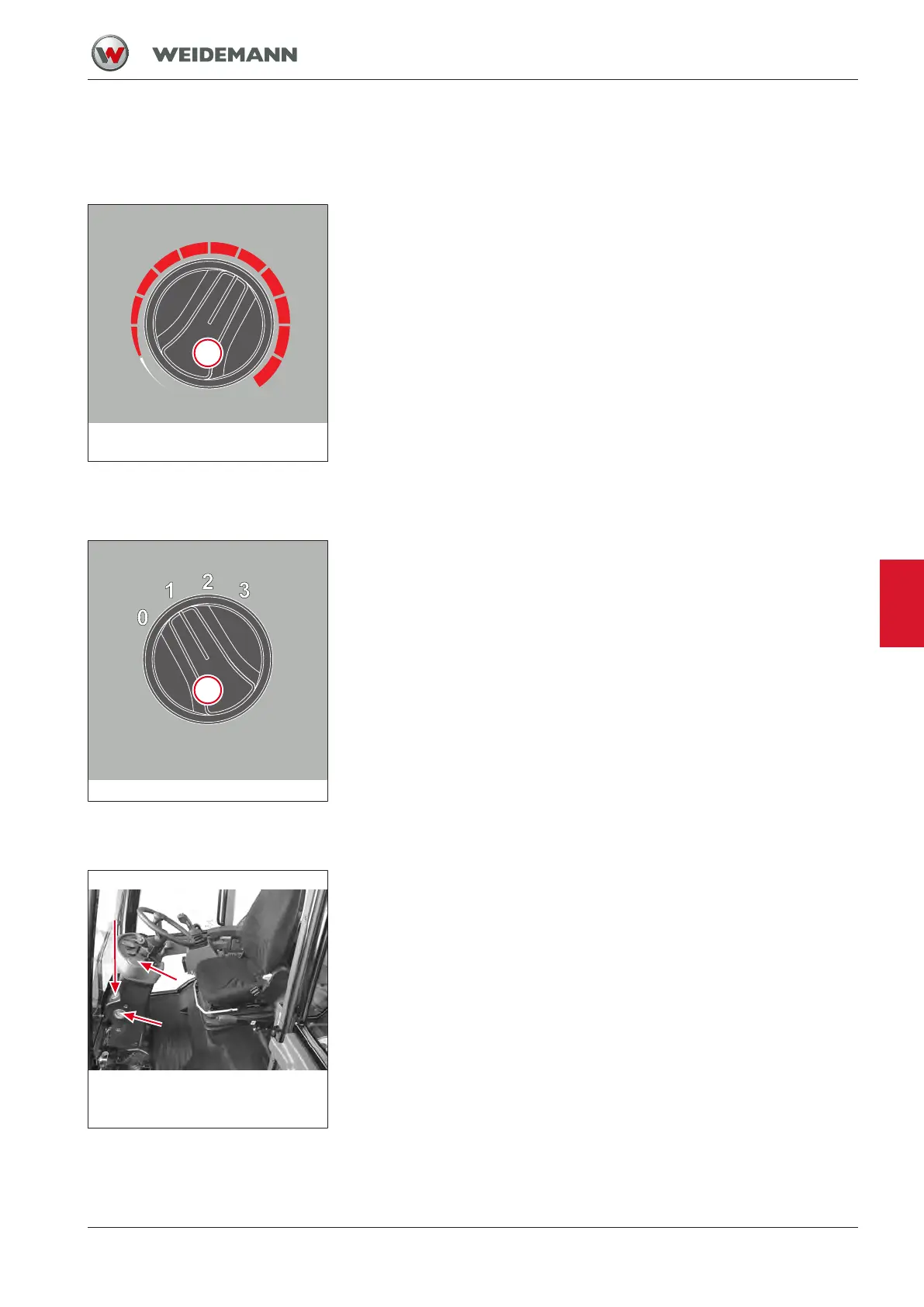

Fig.105: Controlling the temperature
of the heating
The cab is equipped with a fan-assisted heating system. The temperature
of the heating is controlled with the rotary switch 1. The temperature can
be infinitely adjusted.
▪ Turn switch clockwise.
ð The temperature increases.
▪ Turn switch counterclockwise.
ð The temperature decreases.
7.7.2
Adjusting the fan and air vents
2
Fig.106: Adjusting the fan intensity
The cab is equipped with a fan-assisted heating system. The fan is oper-
ated with the rotary switch 2 in the instrument panel. Adjust the fan by
turning the switch. The fan can be set to four different levels.
▪ Level 0
ð Fan is switched off.
▪ Level 1
ð Low ventilation
▪ Level 2
ð Medium ventilation
▪ Level 3
ð High ventilation
Fig.107: Overview of air vents
nozzles
Adjusting the air vents nozzles
The air flow is directed in the cab with the nozzles. In cold weather with
warm air supply, the windows are cleared of ice and the cab is heated.
Ventilate cab
With the heating switched off, the cab can be ventilated with the fan or
the windows. Always lock the side windows or cab doors in the open pos-
ition.
