Commissioning
6.3 Indications in the display
88
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
A
B
C

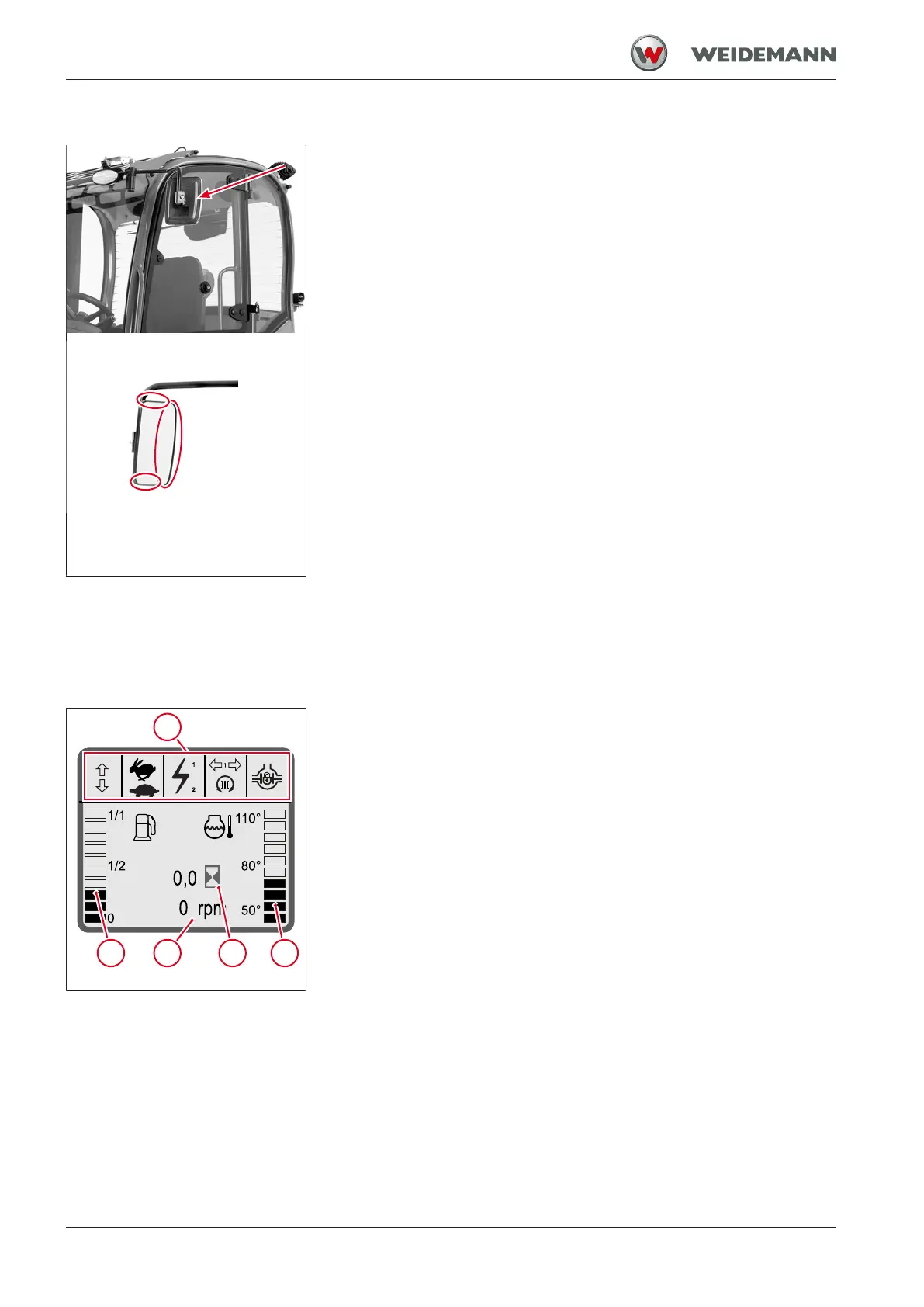

Fig.68: Adjusting the mirror on the
vehicle
Adjusting the rearview mirror
1. Adjust the rearview mirrors as shown.
ð In order to prevent the mirror from touching the door, turn the mir-
ror bracket sufficiently forward (about 90°).
2. Adjust the rearview mirrors.
• The outer edge of the vehicle must be visible on the inside A.
• The horizon must be visible at the upper edgeB.
• At the lower edgeC, the visible area must be as close as possible to
the vehicle.
Adjust the inside mirror in the same way, so that the area directly behind
the vehicle is visible.
6.3
Indications in the display
6.3.1
Overview: Display
2
1
345
Fig.69: Display
1 Display with symbols for additional information
2 Engine temperature display
3 Operating hours indicator
4 Speed indicator
5 Fuel level gauge for diesel tank
