Operation
7.11 Operating electrical functions
146
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
7.11
Operating electrical functions
7.11.1
Operating the 3-pole plug receptacle at the loader unit
1
2

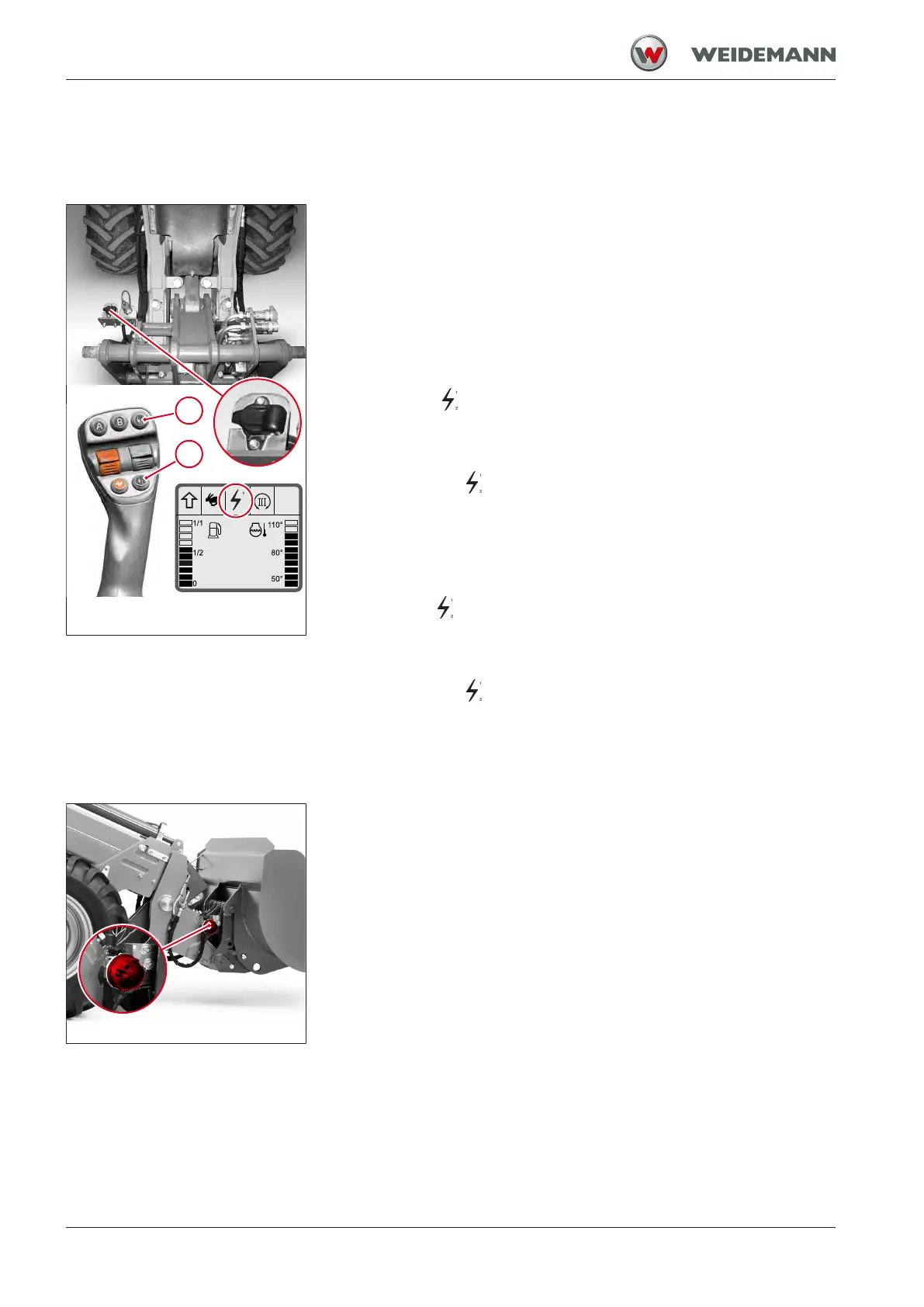

Fig.137: 3-pole plug receptacle at
the loader unit
The 3-pole plug receptacle on the loader unit is required for connecting
attachments on which certain functions are electrically operated.
The 3-pole plug receptacle on the loader unit is operated with buttons 1
and 2 on the joystick. Depending on the attachment used, the buttons
have a holding function or a sensor function.
Operation for holding function:
▪ Press the buttonon the joystick.
ð Symbol
appears in the display.
ð The 3-pole plug receptacle at the loader unit is activated.
▪ Press buttonon the joystick again.
ð The symbol
in the display disappears.
ð The 3-pole plug receptacle at the loader unit de-activated.
Operation for sensor function:
▪ Press and hold the buttonon the joystick.
ð Symbol
appears in the display.
ð The 3-pole plug receptacle at the loader unit is activated.
▪ Release the buttonon the joystick.
ð The symbol
in the display disappears.
ð 3-pole plug receptacle is deactivated.
7.11.2
7-pole plug receptacle at the loader unit
Fig.138: 7-pole plug receptacle front
The 7-pole plug receptacle on the loader unit is used to connect lights to
attachments, e.g. snow plow, broom, etc.
