Operation
Operating electrical functions 7.11
147
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
7.11.3
230 volt plug receptacle in the cab
WARNING
Risk of injury due to electric shock!
The mains plug is operated with 230 volts. Defective cables can lead to
electric shocks which can result in death or serious injury.
► Use only safe electrical devices that are in perfect condition.
► Immediately replace malfunctioning cables.

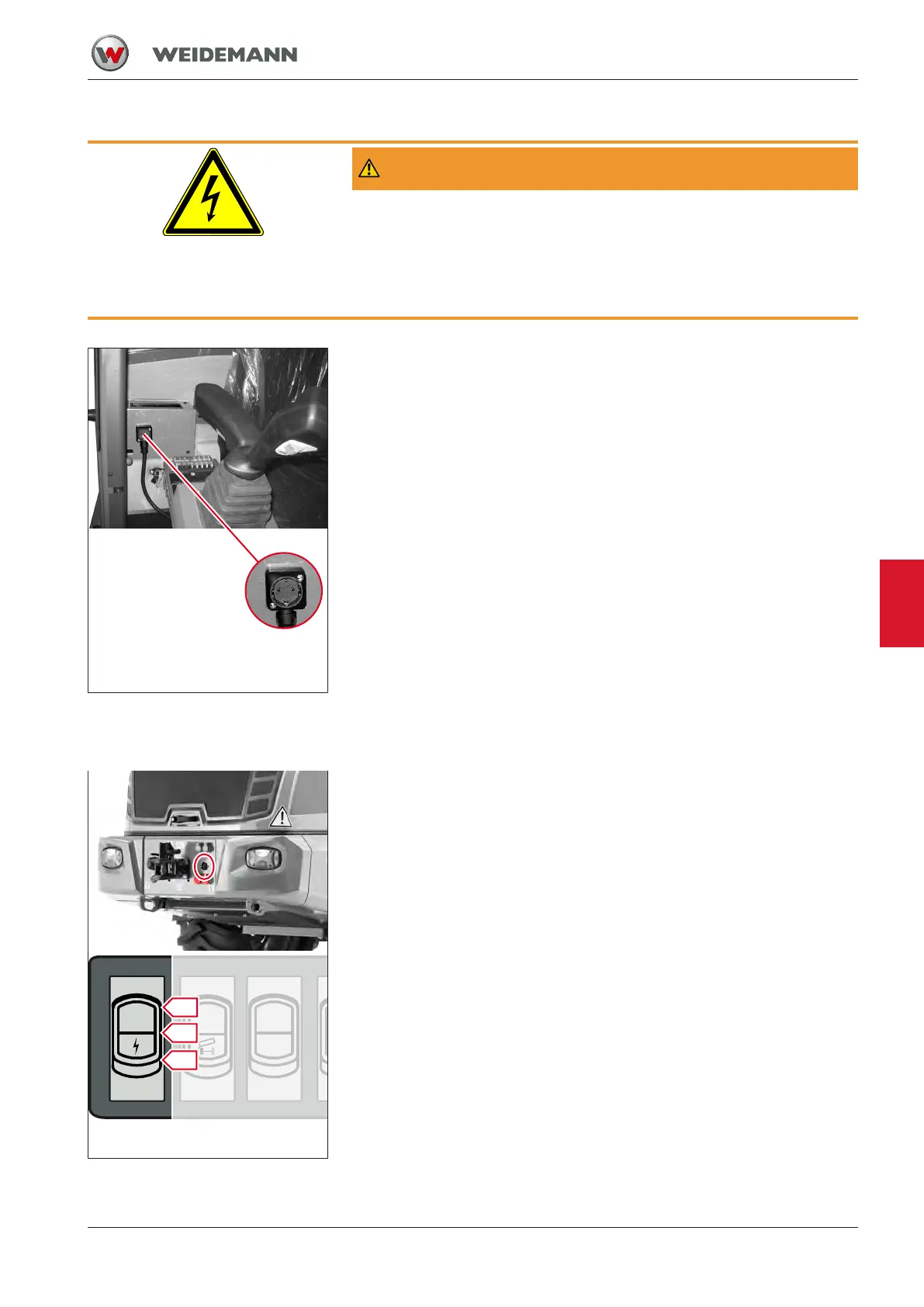

Fig.139: 230 volt plug receptacle in
the cab
With the engine and hydraulic oil preheating option, an additional 230 volt
plug receptacle can be installed in the cab. The maximum connected load
of the plug receptacle is 2000 watts.
7.11.4
Operating 3-pole plug receptacle at the rear
0
I
II
Fig.140: 3-pole plug receptacle at
the rear
The electric plug receptacle at the rear is required for the connection of
rear attachments or trailers with specific electric functions.
The wiring of the electric plug receptacle at the rear must be adapted to
the relevant rear attachment.
Operating the rear electric plug receptacle
The wiring of the electric plug receptacle at the rear must be adapted to
the relevant rear attachment.
▪ Move the switch to position I or II.
ð The electric plug receptacle at the rear is switched on.
▪ Move the switch to position 0.
ð The electric plug receptacle at the rear is switched off.
