Weidemann Basic line 4080T - Drive System

Technical data
12.5 Drive system
240
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
12.4.5

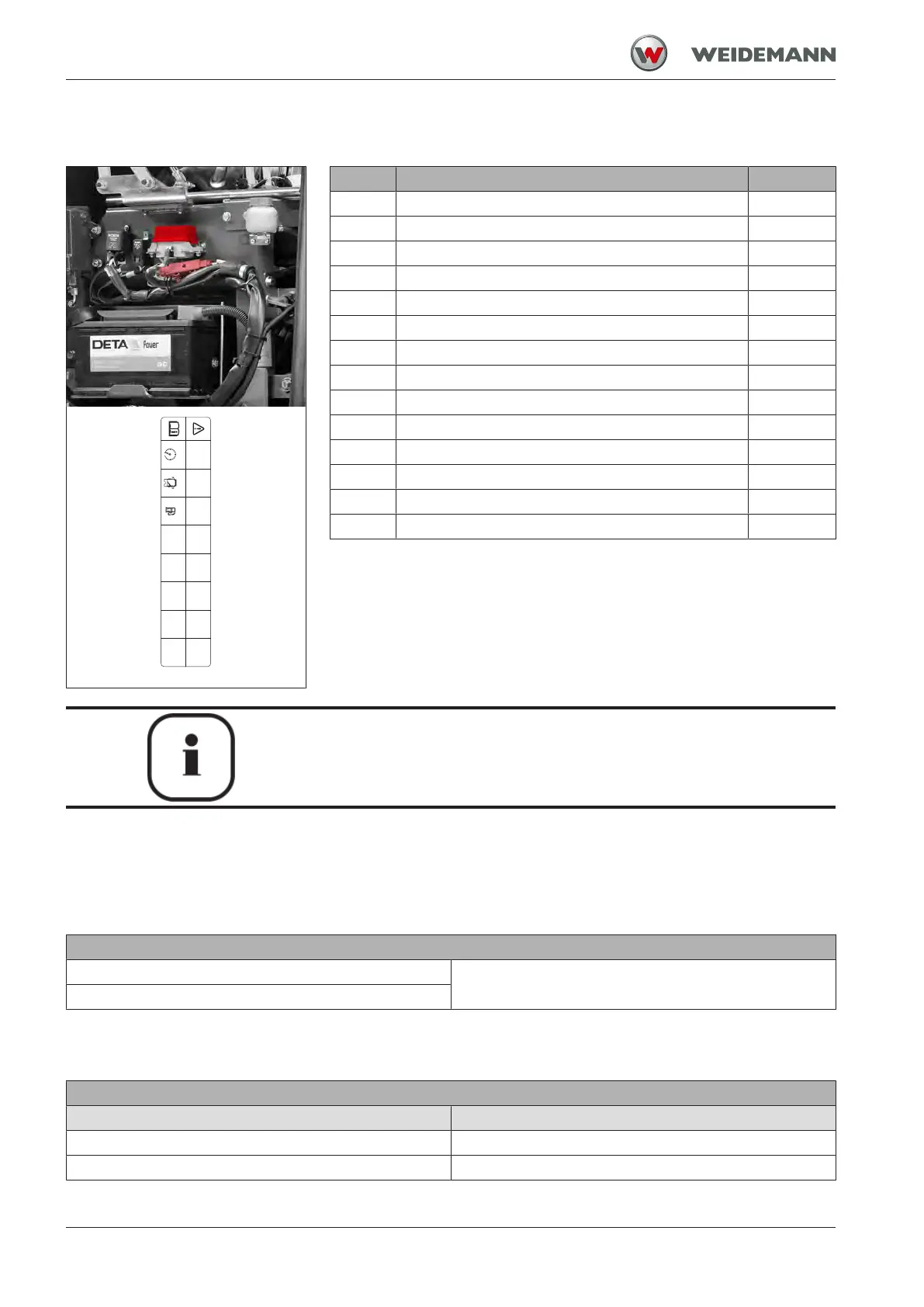

Fuse assignment in engine compartment
F33
-
F301 (40A) F302 (50A) F303 (20A) F304 (30A)
Engine ECU
F305
-
F306
-
F34
-
F35
-
F36
-
F37
-
F38
-
F39
-
F40
-
e
Fig.223: Engine compartment fuses
Item Protected function Fuse
F33 Not assigned -
F34 Not assigned -
F35 Not assigned -
F36 Not assigned -
F37 Not assigned -
F38 Not assigned -
F39 Not assigned -
F40 Not assigned -
F301 Instrument panel 40 A
F302 Cab 50 A
F303 Fuel pump 20 A
F304 Engine control unit 30 A
F305 Not assigned 50 A
F306 Not assigned 60 A
Information
Vehicles with Deutz TCD 2.9 L4 engine have an additional main fuse to
protect the preheater relay (F307 - 150 A).
12.5 Drive system
12.5.1
Axles
Description of axles
Front axle Planetary axle, rigid, bolted to the vehicle chassis
Rear axle
12.5.2
Braking system
Description of the brake
Service brake
Location Front axle
Brake fluid ATF oil
