Technical data
Electrical system 12.4
239
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
12.4.4
Fuse assignment of the side console
F17 (15A)F25 (15A)
-
F18 (15A)F26 (15A)
ECU
F19 (15A)F27 (15A)
ECU
F20 (15A)F28 (15A)
ECU
F21 (10A)F29 (2A)
ECU
F22 (5A)
ECU
F30 (10A)
F23 (5A)
ECU
F31 (10A)
F24 (15A)F32 (10A)

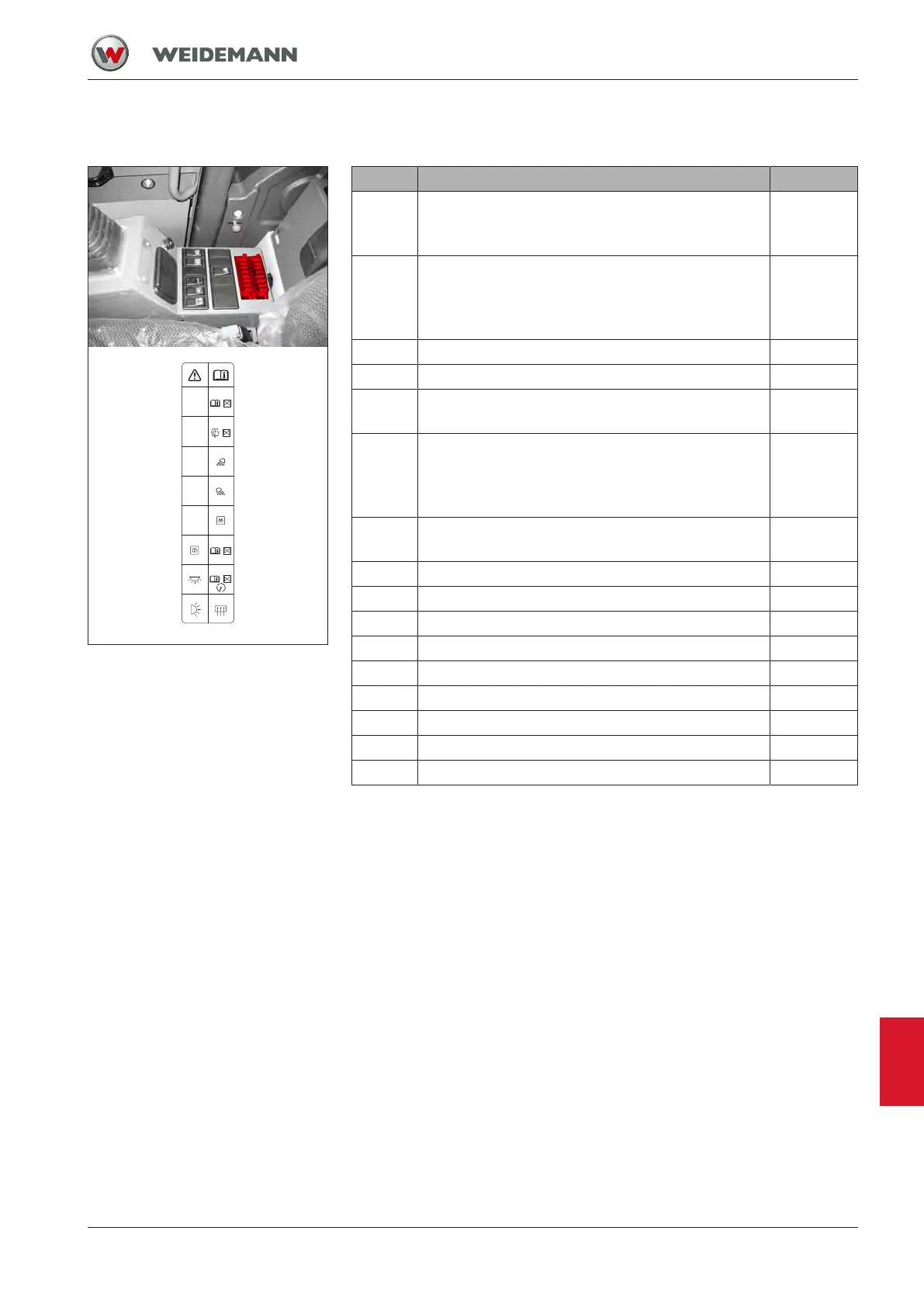

Fig.222: Fuses in the side console
Item Protected function Fuse
F17 Tilt-in switch-off, third control circuit pressure re-
lief, load stabilizer/floating position, high flow, rear
hydraulic connections, options
15 A
F18 Wiper/wash pump rear, rotating beacon, third /
fourth control circuit changeover, third control cir-
cuit / hydraulic connections changeover at rear,
radio
15 A
F19 Front work lights 15 A
F20 Rear work light 15 A
F21 Electrical plug receptacle at rear, hydraulic con-
nections at rear (double-acting)
10 A
F22 Communication interface Diagnostics, control
electronics, seat switch, handbrake switch,
switches for continuous operation of third control
circuit
5 A
F23 Control electronics, joystick, switch lighting seat
console, lighting cigarette lighter
5 A
F24 Rear window heating 15 A
F25 Option (seat comfort, central lubrication system) 15 A
F26 Control electronics 15 A
F27 Control electronics 15 A
F28 Control electronics 15 A
F29 Control electronics 2 A
F30 Cigarette lighter 10 A
F31 Interior light of cab 10 A
F32 Reversing light 10 A
