Operation
Working with the vehicle 7.8
135
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
7.8.11
Uncoupling attachments
CAUTION
Injuries due to tipping over of removed attachments!
Attachments that tip over can cause injury to persons.
► Ensure that no one is in the danger zone.
► Only park the attachments on firm and level ground.
► Only close attachments with movable parts (e.g. multipurpose
bucket).
► Ensure the safe and stable position of the attachment, if necessary
use supports provided for this purpose.

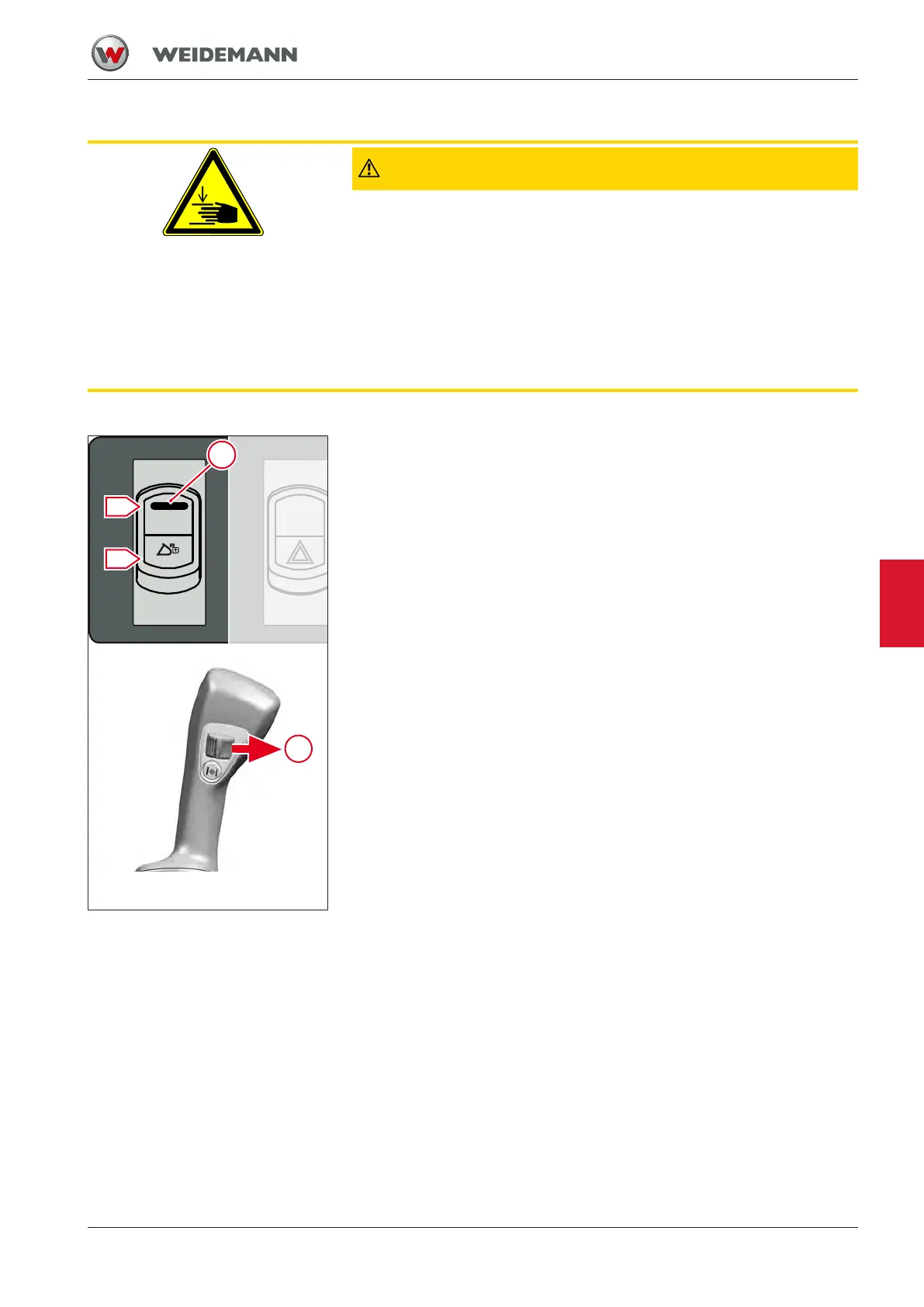

Fig.121: Operating the hydraulic
lock
Uncoupling the attachment with hydraulic power coupler
The hydraulic lock is operated with the switch. The switch is located in
the switch panel in the instrument panel. The switch has two switch posi-
tions. The switch has a lock (S) in the switch.
ü Lower the attachment only to firm, level ground and secure it to pre-
vent it from tipping over or rolling away.
1. Retract telescoping arm completely
2. Lower the loader unit.
3. Press the lock in the switch downwards.
4. Move switch to position I and hold.
5. Move the scroll wheel on the joystick in direction A.
ð The lock pins are retracted.
6. Lower the loader unit and tilt out the attachment.
ð The pins are released from the catch hooks.
7. Drive the vehicle back as soon as the hooks are released.
ð The attachment is uncoupled.
