Cleaning and maintaining vehicle 9.8
205
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
9.8.5
Cleaning the condenser
NOTICE
Damage to the engine due to overheating when equipped with an air
conditioning system!
If the vehicle is equipped with air conditioning, the condenser must be re-
moved to clean the radiator and condenser of the air conditioning system.
► Handle the condenser with care. The condenser fins are very sensit-
ive and can be easily damaged.
Preparation for maintenance In the engine compartment
1. Park the vehicle on a stable, level and dry surface.
2. Secure the vehicle with the parking brake.
3. Retract the loader unit and lower it to the ground.
4. Switch off the ignition and remove the starting key.
5. Let the engine cool down.
6. Open the engine cover.

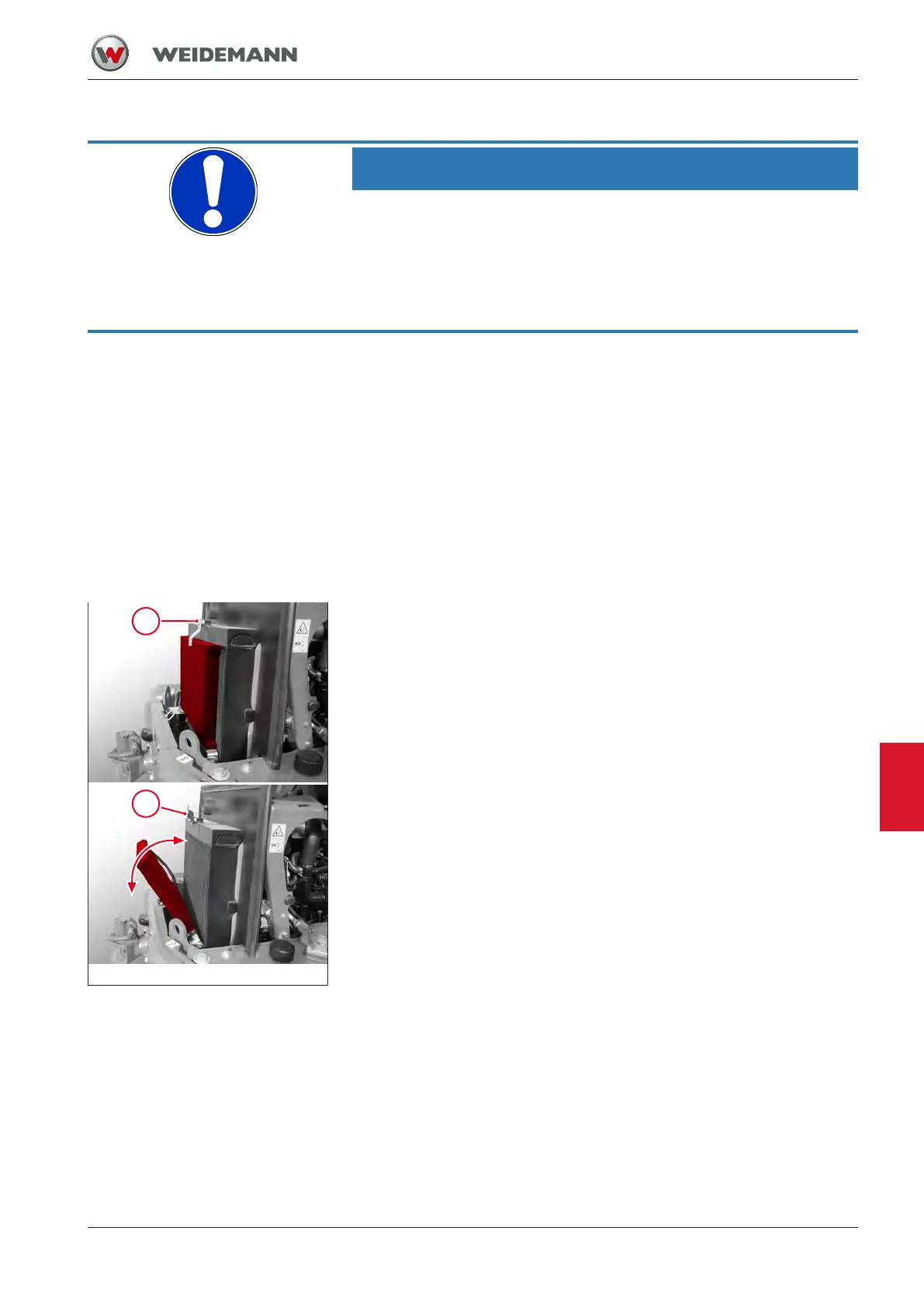

Fig.201: Clean the condenser
Remove the condenser from the air conditioning system.
ü Required tools: Wrench size 13 mm
1. Unscrew screw I.
2. Turn away bracket II.
3. Tilt the condenser forward.
ð The radiator and condenser can now be cleaned.
Installing the condenser of the air conditioning system
1. Tilt the condenser backward.
2. Turn back holder II.
3. Tighten screw I.
4. Close the engine cover.
ð The vehicle is operational.
