Operating states of the regeneration

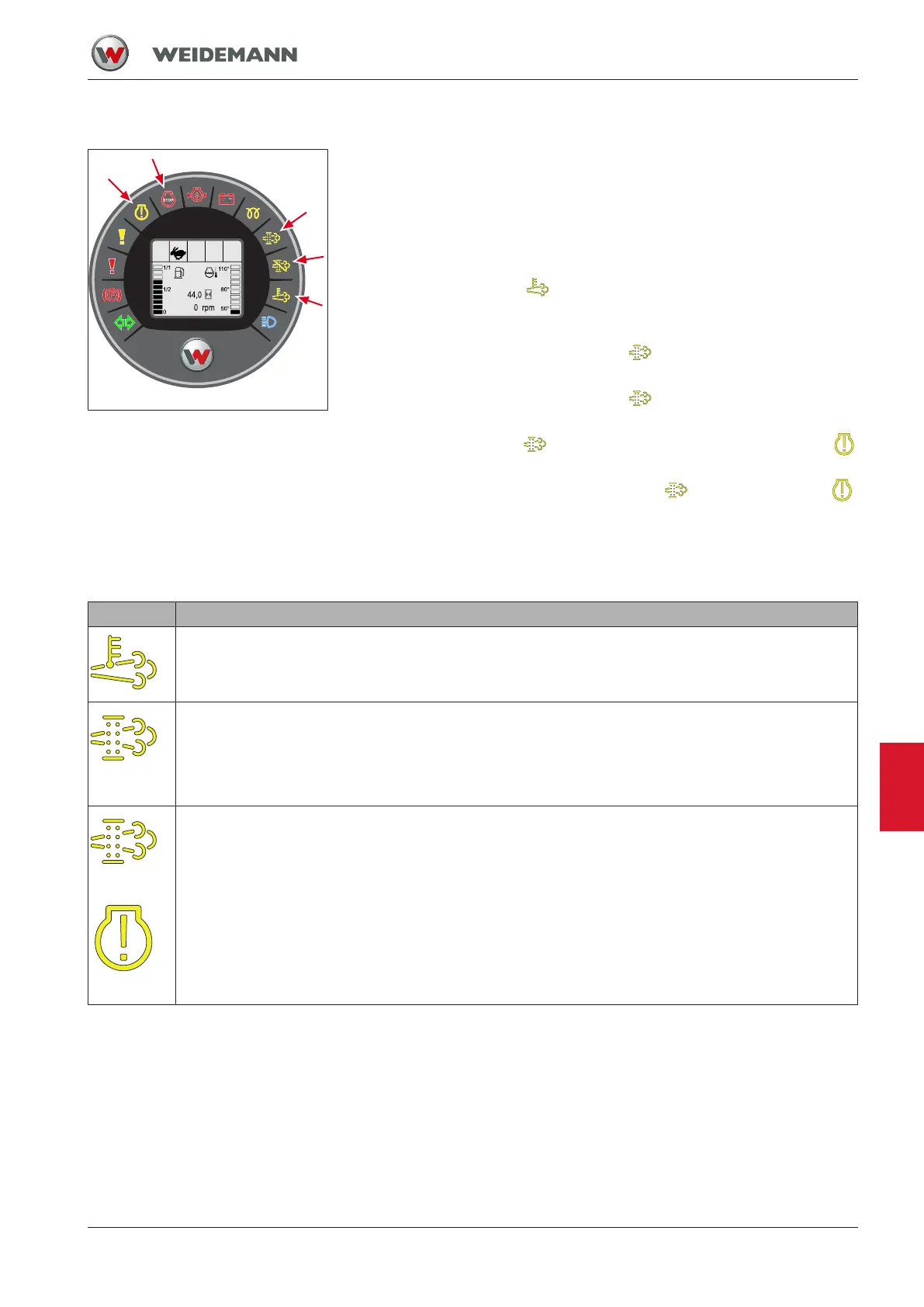

Fig.209: Control light in display
During use of the vehicle, soot particles are deposited in the diesel partic-
ulate filter. This soot load increases and is removed from the diesel par-
ticulate filter by regeneration.
Operating states engine Deutz TCD 2.9
• At a soot load <100%, the vehicle automatically starts a regenera-
tion. The control light
illuminates during the entire regeneration
and goes out once this is completed.
• At a soot load between 100% and 125%, a regeneration must be
triggered manually. The control light
flashes slowly.
• At a soot load between 125% and 143%, a regeneration must be
triggered manually. The control light
flashes quickly.
• At a soot load >143%, the regeneration must be triggered at a stand-
still. The control light
flashes quickly and the control light lamp
illuminates continuously.
• With a soot load >161 %, the control light
and the control light
flash. A regeneration or repair can only be performed by the service
department.
Pilot lights during regeneration Engine Deutz TCD 2.9
Symbol Meaning
High exhaust gas temperature
Control light illuminates during regeneration. The control light mp goes out when regeneration is
complete and the exhaust system has cooled down.
Regeneration necessary
Control light lights up when regeneration is necessary.
• Regeneration starts automatically.
• Regeneration can be triggered manually.
flashes
Flashes
Maximum soot load reached
The soot load of the diesel particulate filter is between 100 % and 140 %. Engine power is re-
duced. Regeneration is urgently needed.
• Regeneration starts automatically.
• Regeneration can be triggered manually.
