Description of the vehicle
5.4 Attachments for the vehicle
54
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
Weidemann GmbH
D-34519 Diemelsee-Flechtdorf
Made in EU
Art.-Nr. 1000216425
Standsicherheit des Fahrzeugs beachten
Observe vehicle stability / Tenir compte de la stabilité du véhicule
Erdschaufel mit Reißzähnen
earth bucket with ripper teeth 1900mm
benne à terre avec dents 1900mm
verwendbar für Fahrzeugtyp bei Schuttgutdichte
to be used for vehicle model with bulk material density
utilisable pour v é hicule modèle avec densit é de mat é riaux en vrac
Q=1,8 t/m³ -
Q=1,3 t/m³ -
Q=0,9 t/m³ -
Q=0,6 t/m³ -
Q=0,6 t/m³ -
1900mm
Gerätetyp
Model
Modèle
Gerätetyp
Model
Modèle
Fabrik-Nr.
ldent. No.
No. Fabr.
Gewicht (kg)
Weight (kg)
Poids (kg)
Tragfähigkeit max. (kg)
Max. load capacity (kg)
Charge limite max. (kg)
Schaufelinhalt DIN/ISO gehäuft (m³)
Bucket capacity as per DIN/ISO ( m³)
Capacité godet, dóme DIN/ISO ( m³ )
zul. Druck (bar)
Limit pressure (bar)
Pression limite (bar)
Baujahr/Monat
Model year
Année de fabrication
bei Lastschwerpunkt (mm)
Load centre (mm)
Distance du centre de la eh arge (mm)
1000263963 0,7
1000302317

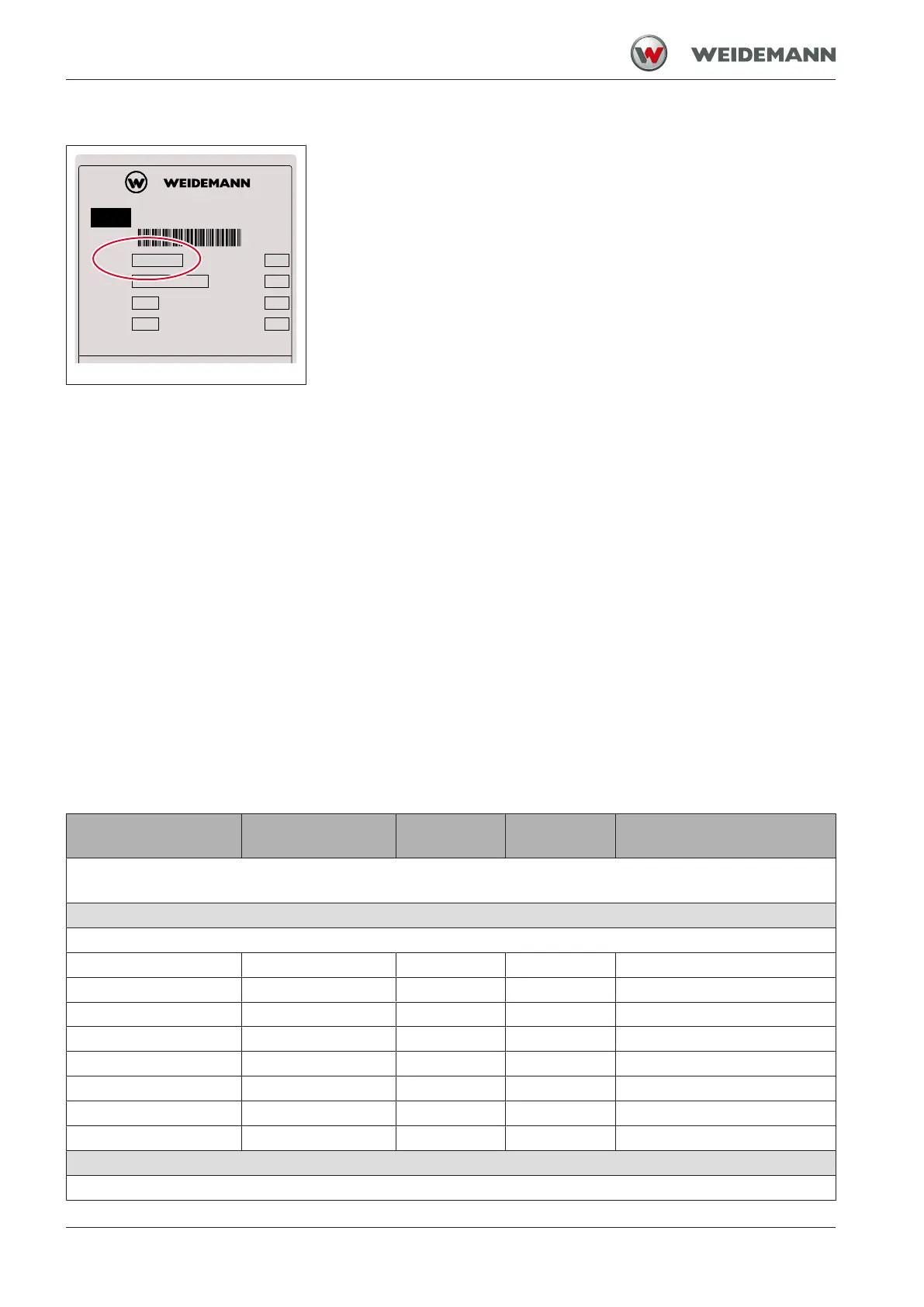

Fig.16: Material number attachment
Determine load on loader unit
The load on the loader unit can be determined with the aid of the bulk
densities of materials, volume and weight of the attachments.
Procedure:
1. Determine the bulk density of the material.
ð To do this, find the corresponding bulk density of the material in
the table above.
2. Determine which attachment will be used.
ð Find the material number of the attachment on the nameplate of
the attachment.
3. Determine the volume and weight of the attachment.
ð To do this, select the material number of the corresponding at-
tachment from the table below and read off the volume and
weight.
Example
• Material Sand
– Bulk density 2t/m³
• Earth bucket without teeth
– Capacity 0.74 m³
– Weight 375 kg = 0.375 t
• Calculation
– Bulk density of the material x contents of the attachment + weight
of the attachment = load on the loader unit.
– (2t/m³ x 0.74m³) + 0.375t = 1.855t
5.4.2
Permitted attachments
Material number Type Width in mm Capacity in
m³
Weight in kg
Some attachments are not approved for vehicle travel on public roads. These attachments are marked with a *.
Remove these attachments before driving on public roads.
4-in-1 bucket without teeth
Usage: Loosening, picking up, transporting and loading of loose or solid material.
1000241849 RL60T 1650 0.50 470
1000345110 RL60T 1900 0.70 598
1000345131 RL60T 1900 0.70 598
1000389966 RL60T 1900 0.70 621
1000285925 RL60T 2000 0.90 610
1000314411 RL60T 2000 0.90 571
1000345132 RL60T 2000 0.90 625
1000345133 RL60T 2000 0.90 622
4-in-1 bucket with teeth
Usage: Loosening, picking up, transporting and loading of loose or solid material.
