OAX 600 – 700 – 800 - 1000

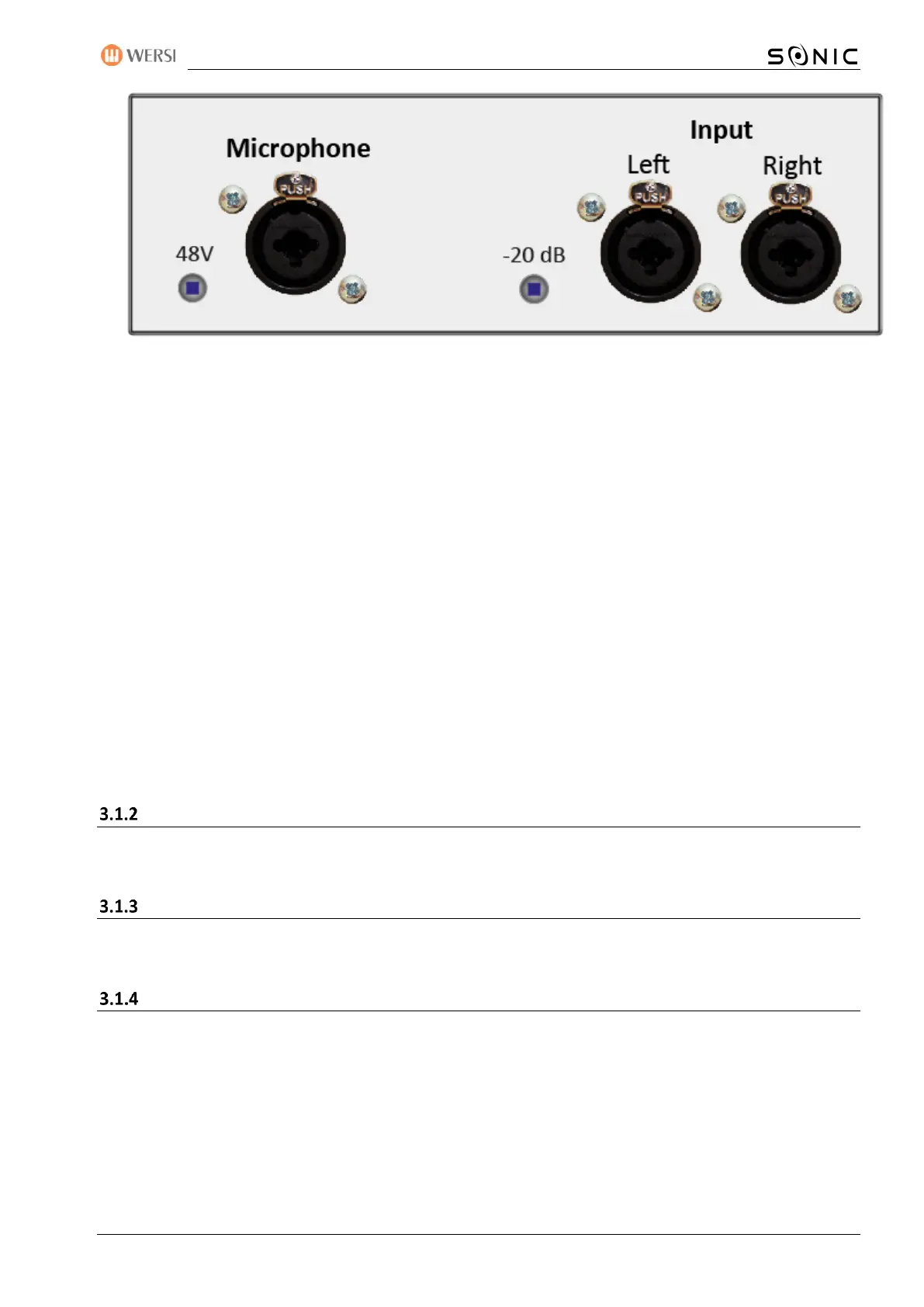

1 x symmetrical microphone input via 3-pole XLR recessed socket combined with 6.35 mm TRSjack.
With the small button to the left of the microphone input, a 48 volt phantom power for special
microphones can be switched on.
2 x symmetrical mono inputs LINE INPUT 1 with LEFT (left channel) + RIGHT (right channel) combined
via 3-pole XLR recessed socket with 6.35 mm TRS jack. With the small button to the left of the inputs,
the signal can be lowered by -20dB.
You will also see diverse connectors such as
PC mouse
PC keyboard
more USB ports
and other
With the current connection from 110V to 240V (47 Hz to 53Hz), the instrument can be operated
with different mains voltages (e.g. Europe and the USA).
Additional connections OAX 500 - 600
For the OAX500 and OAX600 models, the back of the net input and an audio-out with the jacks for left and
right are located at the bottom.
Additional connections OAX 700
For the OAX700 model, the front right of the full pedal is the mains input and an audio-out with the jacks for
left and right.
Additional connections OAX 800 - 1000
On the OAX 800 and OAX 1000 models, the main input is located on the front right of the full pedal, an audio-
out and audio-in with the jacks for left and right respectively.
