• Release strap slowly ensuring inner arms
are secure. Slide the strap to rear of
awning roll tube and tie to rear arm.
• Loosen locking knobs for both arms and
extend arms so the canvas will clear door
in the open position.

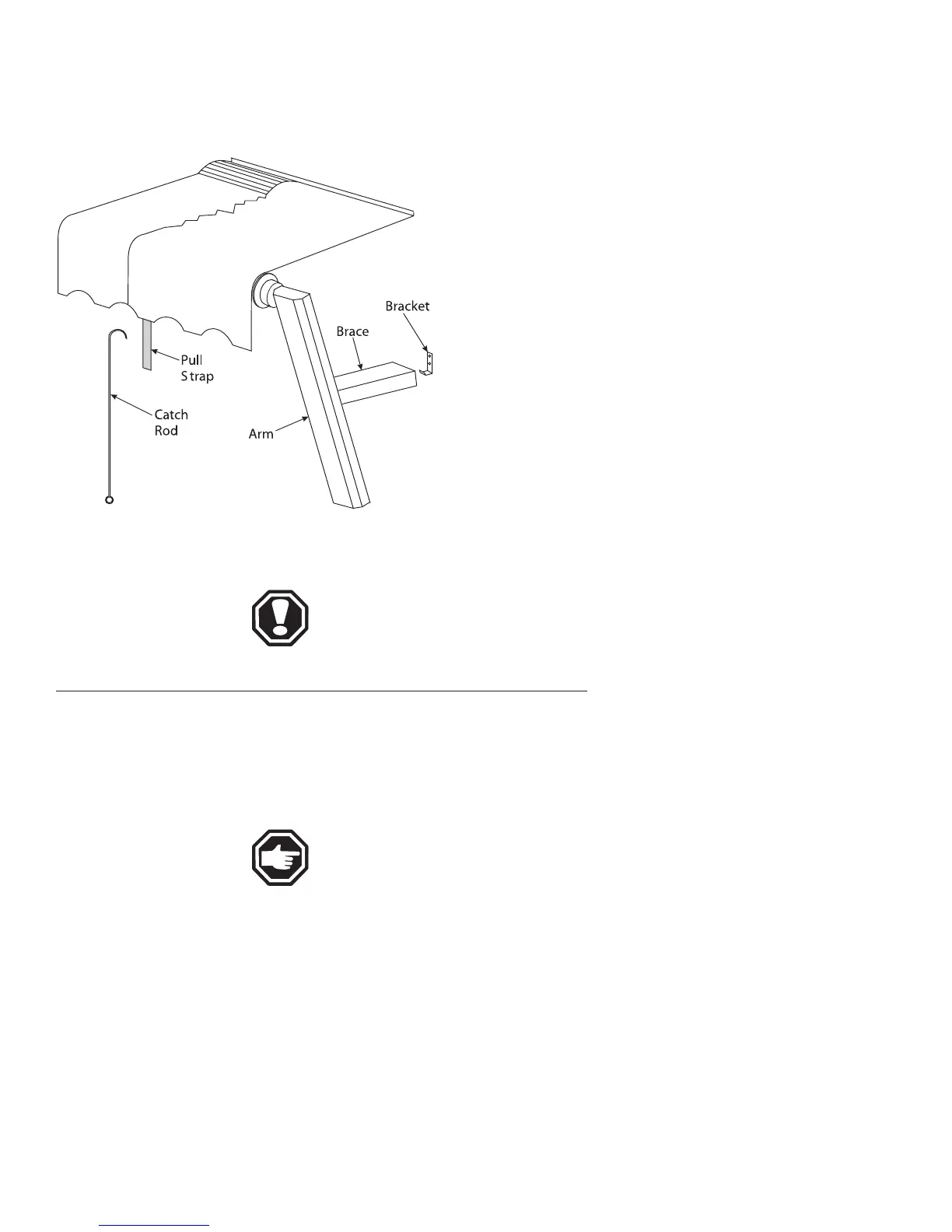

To Retract Awning
• Loosen locking knobs for both arms.
Lower arms to stop bolts. Tighten knobs.
• Untie the pull strap with a firm grip until
tension is off the inner arms. Fold inner
arms and attach them to the velcro.
•Carefully allow material to wind onto
awning roll tube while holding strap is in
neutral position. This will allow material
to roll up evenly.
• Awning end caps should be against the
rubber bumpers. If one end cap is off, pull
down on awning pull strap while holding
strap slightly to opposite side, allowing
awning to roll back up into position.
CAUTION: When the awning is at full extension do not allow
the awning to snap back into the retracted position. Personal
injury or damage to the awning or motorhome may occur.
Care and Maintenance
Mildew will not form on the awning material itself, but it may form on
the dust accumulated on the canopy. A quality vinyl cleaner, such as Carefree
Awning Magic, will help keep your awning looking new. Be sure to follow the
instructions on the container.
NOTE: Allow the awning material to thoroughly dry before
rolling the awning up. Metal surfaces should be cleaned with
soapy water and thoroughly rinsed.
To Unlock the Awning:
1. Loosed the black locking knobs.
2. Lift the arm storage locks located on each upper arm to the unlock
position. Slide the brake control, located on the front arm only, to the
full up (unlock) position.
Equipment
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
5•150
Awning Care &
Maintenance
