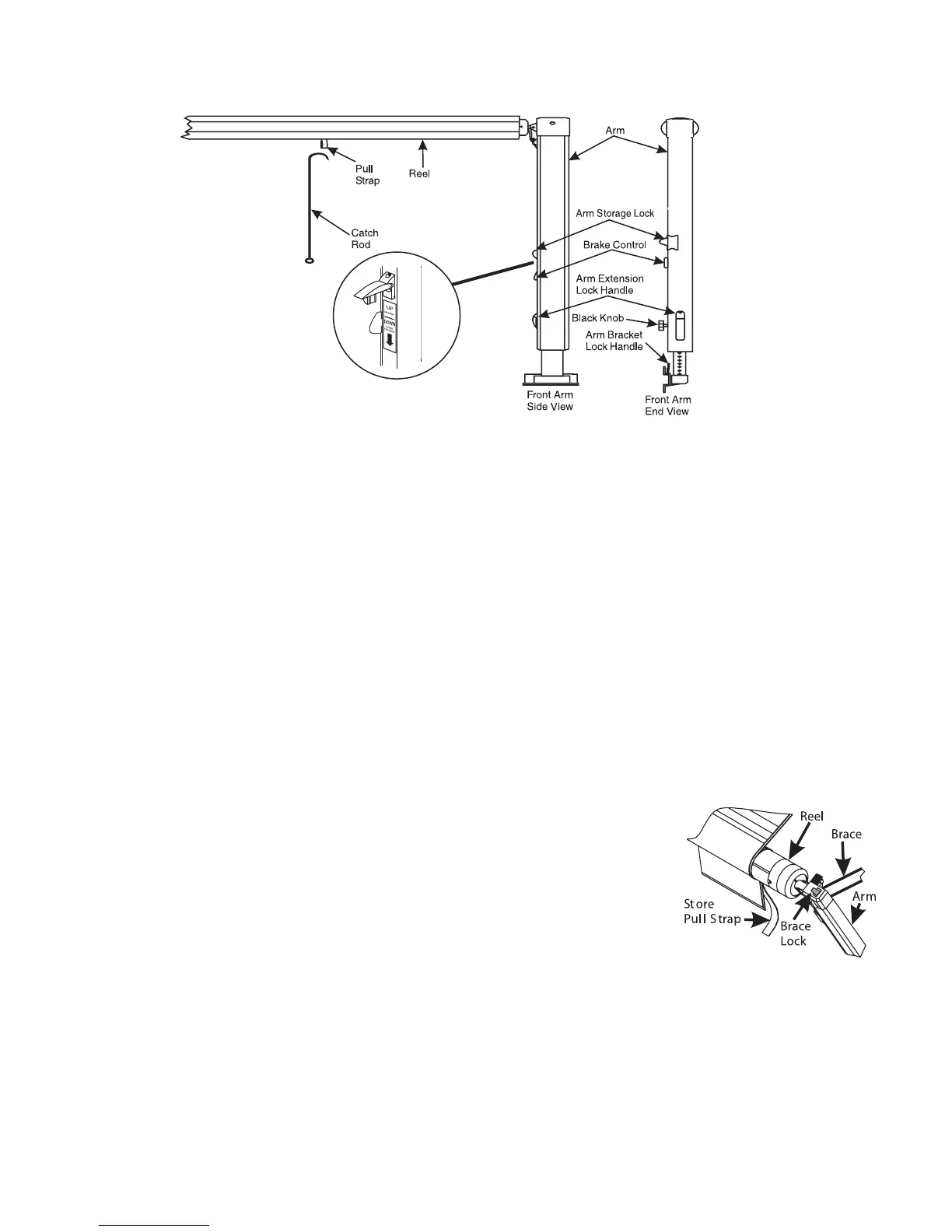

To Extend The Patio Awning
1. Hook the loop of the center strap with the pull wand and draw the
awning away from the motorhome to the desired extension. Slide the
center pull strap to one end of the awning and store it.
2. Slide the inner rafters to the top of each arm and push outward to the
tension canopy. Tighten the black locking knobs.
3. Raise the arm extension lock handles and slide the awning upward.
Lower the lock handles and move the awning arm upward or down-
ward to lock the detent into the hole. First, raise the lock handles on
the main side. Next, raise the lock handles to the entry door. Go do
the other awning arm and do the same. Make sure the awning is
straight.
To Retract The Patio Awning
Retract the arms and lower the awning until the arms rest on the lower
stop bolts and lock into position. Loosen the two black locking knobs.
Release the locking tab on the end of the awning leg. Slide the pull
strap to the center of the awning while holding on to the strap. Allow
the awning to roll up to the stored position.
• Snap the arm storage locks into the down position.
• Verify that the brake control is in the locked or closed
position.
