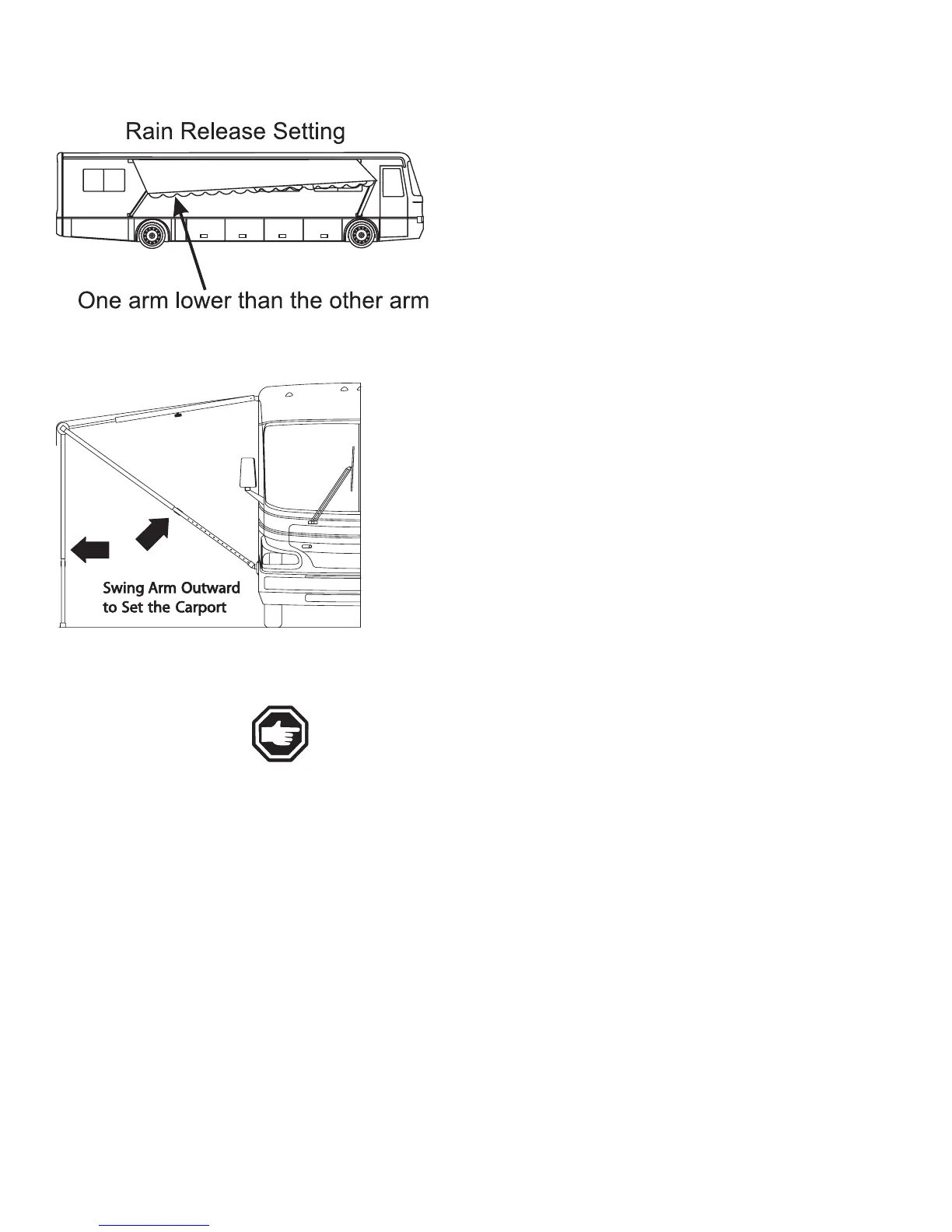

Rain Release Setting:
After the awning has been extended, choose the rain
release position to prevent water build up on the
awning. To position the awning in the rain release set-
ting lower one arm of the awning and leave the other
arm in the normal position. This will create enough of a
slope for adequate water run off.
Using The Carport Feature:
To safely use the carport feature:
1. Extend the braces and lock them into the end of
the side arms. Tighten the black knobs.
2. Extend the awning as described under
“To Extend Awning.”
3. Unlatch the bottom of the rear arm by pushing in on the
lock handle on the arm bracket. Swing the arm away
from the motorhome to an upright position.
4. Raise the rear arm extension lock handle all the way up
to the unlocked position. Extend the arm to position the
awning at the desired height and lower the lock handle
to lock the arms in place.
5. Drive the stakes through the bottom holes in the arm.
6. Repeat instructions 1 through 5 for the front arm
extension lock handle.
NOTE: To move the awning out of the carport position
reverse the above steps.
Securing The Awning For Travel:
Before traveling, check the following:
1. The awning is fully retracted against the sides of the motorhome.
2. The black locking knobs are tightened.
3. The storage locks are down and in the locked position.
4. The brake control is in the full down (locked) position and no red
warning is showing.
5. The bottom of the front and rear arms are latched properly into
the bottom brackets.
6. The catch rod is stored away.
Care and Maintenance:
• Washing: On a monthly basis, loosen hardened dirt and remove dust
from the awning with a dry, medium bristle brush. Thoroughly rinse both
the top and bottom with a hose. Wash both sides of the awning with a
quality vinyl cleaner solution using an awning brush. This process can be
made easier with our support, plus other awning maintenance products.
