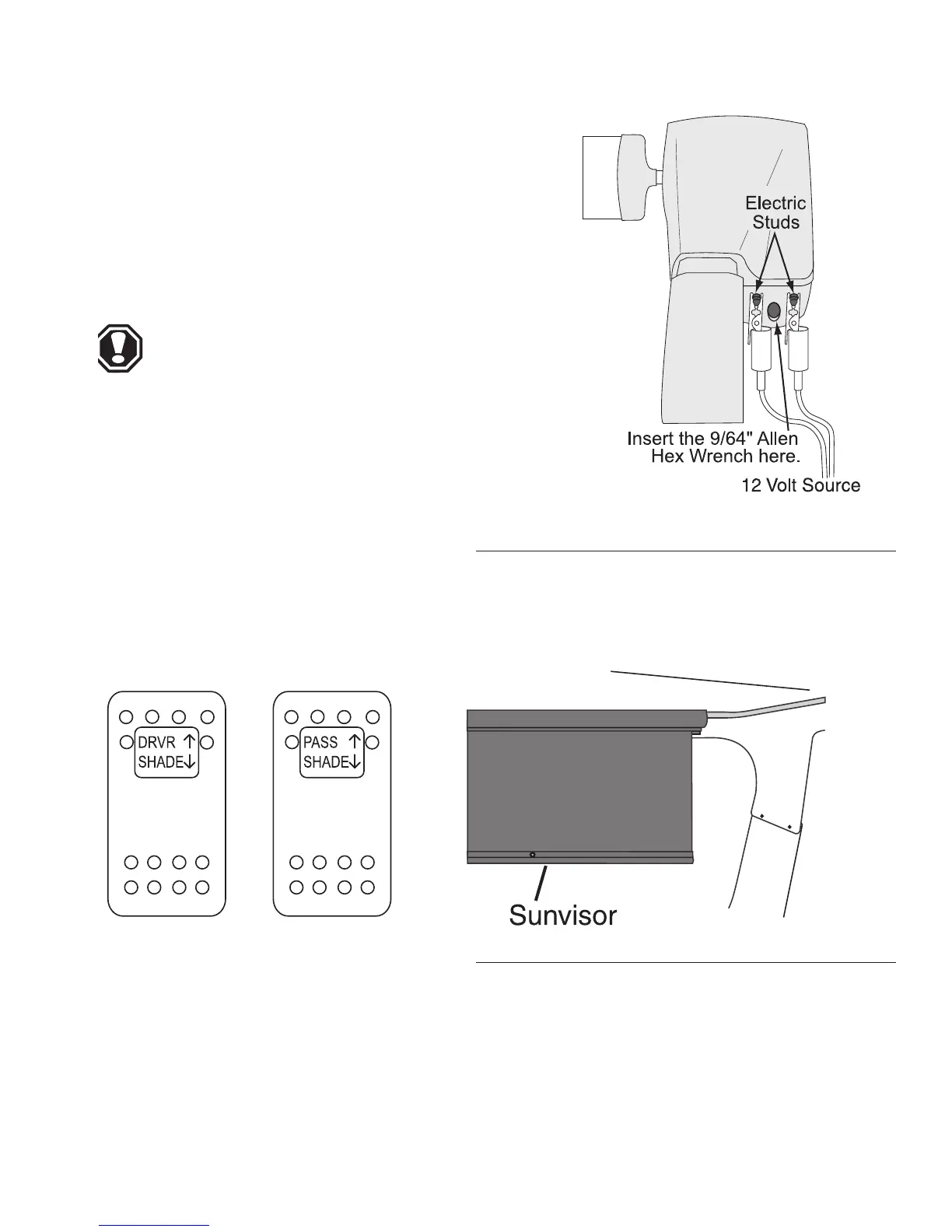

1. Two exposed electrical studs are mounted externally at
the forward end of the awning at the motor assembly. An alter-
nate 12 Volt DC positive and negative supply may be supplied
to these connections. If awning fails to move, reverse the
polarity of the alternate supply leads.
2. On the motor assembly, mounted externally at the for-
ward end of the awning, is an opening. Insert a 9/64” Allen
hex wrench. Using an electric drill, wind the awning to the
retract position.
CAUTION: When using alternate method to
operate the awning, use extreme care to keep
appendages, hair or loose clothing away from
exposed rotating hardware.
Water weighs 8.33 pound per gallon. The awning was not
made to withstand the 500 to 700 pounds that could accumu-
late. It is best not to subject the awning and the motorhome to
the needless strain.
To extend the sunvisor press and hold the lower portion of the control
switch until the desired location is obtained. Once the desired point is
obtained the sunvisor will remain in that position until changed. Retracting the
sunvisor is the same as extending, except the upper portion of the switch is
used. Cleaning the sunvisor should be done using a soft clean brush to remove
dust.
The sofa will convert easily into a bed. The sofa comes equipped with safe-
ty belts and these should be used if occupied during travel.
• Raise the sofa seat base until seat base and backrest form a V-Shape
by lifting up from the center of sofa just below the seat cushions.
• Push down on seat base until the seat base and backrest are flat.
• Fold seat belts out of the way.
Equipment
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
5•155
WINDSOR
SUNVISOR
SOFA TO SLEEPER
