Caster Adjustments:

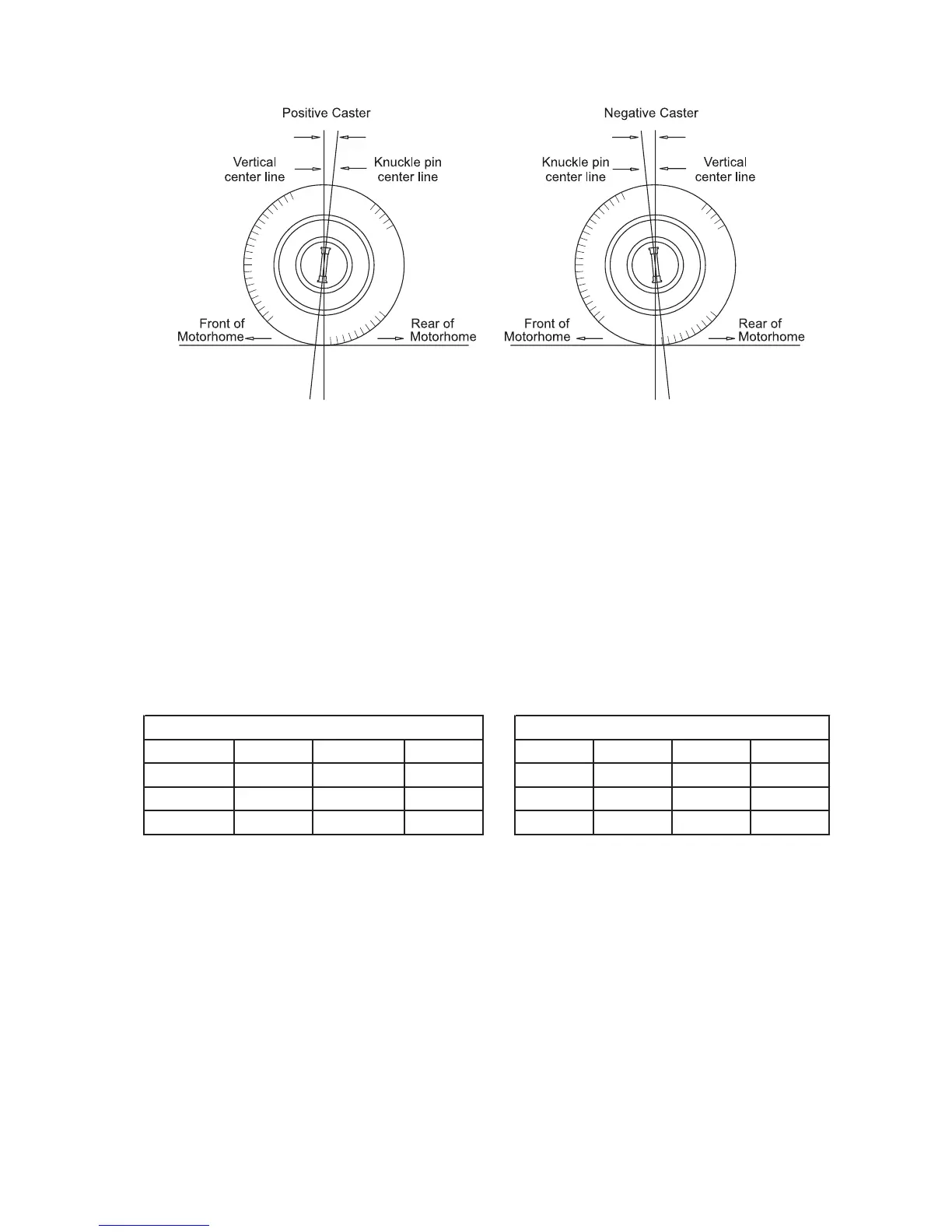

Caster is the fore and aft tilt (toward the front or rear of the motorhome)
of the steering kingpin as viewed from the side of the motorhome.
“Positive” caster is the tilt of the top end of the kingpin toward the rear of
the motorhome.
“Negative” caster is the tilt of the top end of the kingpin toward the front
of the motorhome.
A caster angle more positive than specified may result in excessive steer-
ing effort and/or shimmy. An angle less positive may result in vehicle wan-
der or poor steering return to center. The caster angle is determined by the
installed position of the steer axle.
Chassis Information
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
10•271
Min. Nominal Max Min. Nominal Max
Camber -0.35° -0.15° -0.65° Camber -0.35° -0.15° -0.65°
Caster 2.00° 3.00° 4.00° Caster 2.00° 3.00° 4.00°
Toe -0.05° -0.02° -0.08° Toe -0.05° -0.02° -0.08°
