blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
2 Product description
The blueMatic EAV4/EAV4+ (Automatic locking system with motorised opening
function) is a state-of-the-art locking unit for securing and locking entry doors
in a contact-free manner. The hooks and the latch can be retracted electrically
so as to open the door.

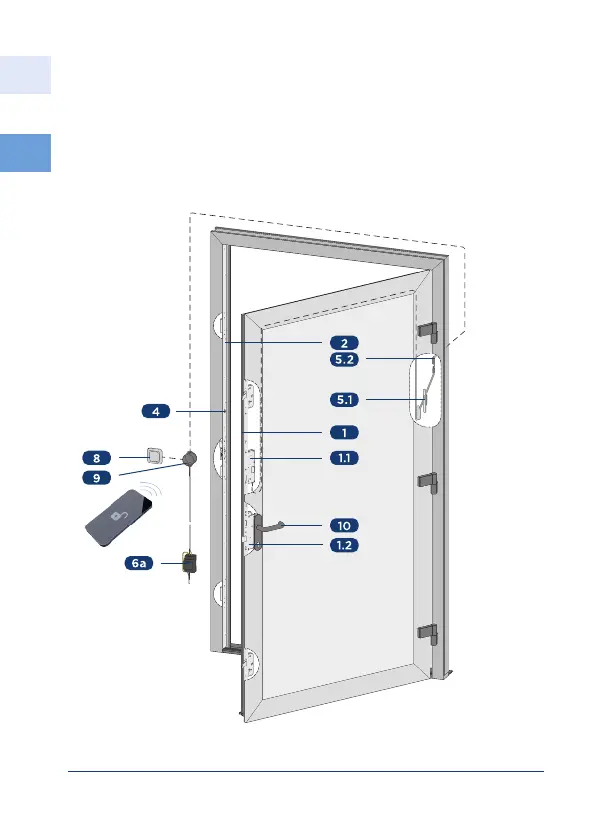

Figure 2-1: Locking blueMatic EAV4 / EAV4+ with continuous keep rail and
accessories (EAV4+ with app control)
230V AC
