Attention!
Magnetic clip for EAV4+ urgently
required. Without a magnetic clip,
the "door closed" status query is
not possible.
Notice: The magnetic clip must
generally be ordered separately.
For single keeps, the magnetic clip
with keep (e.g. T-MAGNETCLIP
1,0 EAV4+/BM+ SB U24X5,5 GR,
T-MAGNETCLIP 1,5 EAV4+/BM+ SB
U24X7,5 GR) must be used.
510736426
2
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

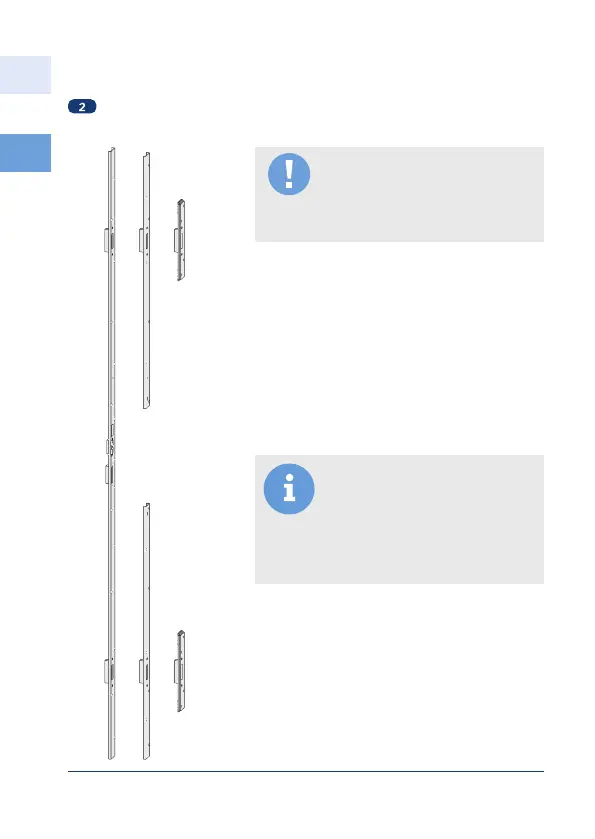

Keep rail/extension keep rail with additional
hole (4.5 mm) for installation of the magnetic
clip.
For single keeps, the magnetic clip with keep
must be used.
The magnetic clip is required for the status
query in the app and for the wired signal output
(e.g. Door closed and locked" signal).
Keep rail/extension keep set/single keeps
Select the appropriate frame components (keep
rail/extension keep set/single keeps) in the cur
-
rent program manual or in the online STV configu-
rator:
