Function LED, unlock
• Indicates to the user how long the motor needs, e.g. for unlocking, or when
the door can be opened (mounted on the outside of the door, e.g. for
environments with a high noise level)
• LED Red: Motorized unlocking procedure until the latch Latch retraction,
door sash cannot be opened
• LED Green: Unlocking completed successfully, door sash can be opened

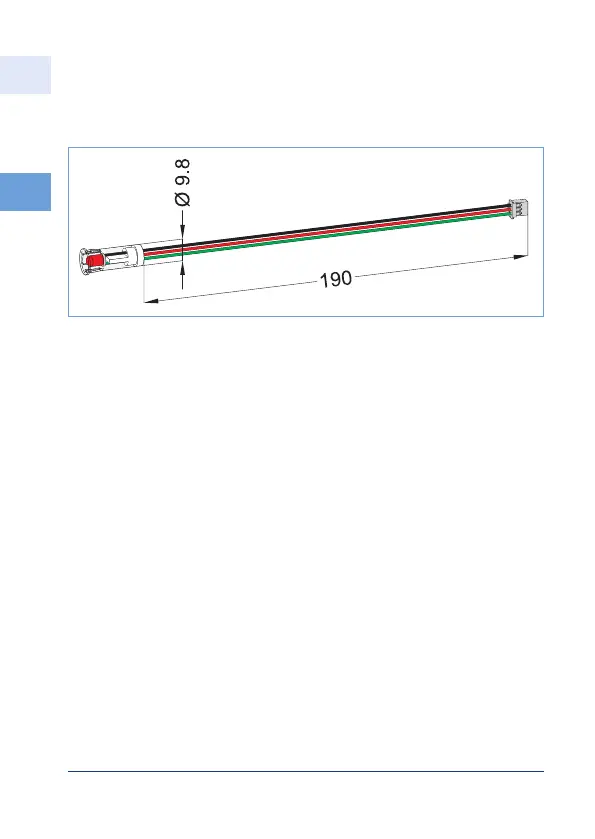

Figure 3.7-1: LED for optional Plug'n'Play connection to motor housing BM+ or
EAV4+
3.7 Accesories T-LED EAV4+/BM+ STATUS
