blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

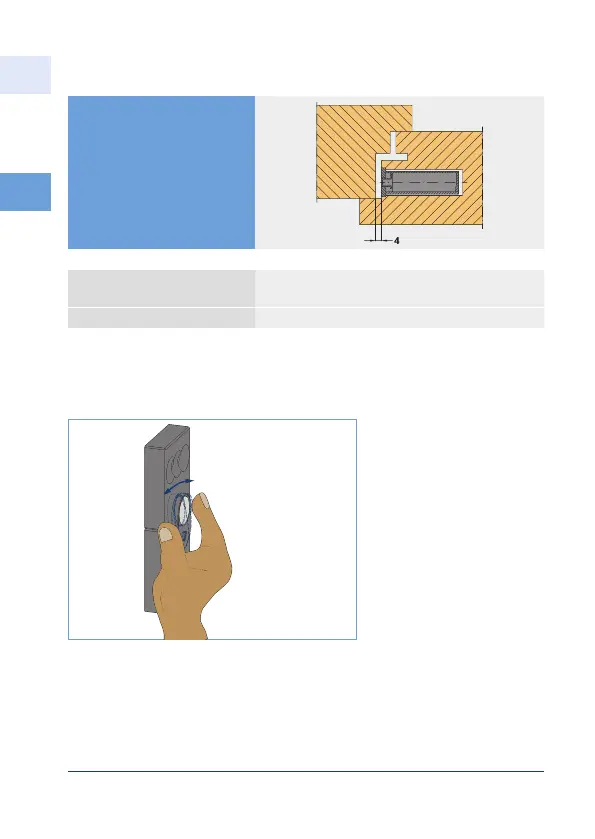

Definition of residual
airgap: Example of wood,
4 mm airgap
Residual airgap Explanation
Wood flush mm
Residual airgap  keep rail
T-MAGNETCLIP 1,5 EAV4+/BM+ GR
Wood special (keep rails) check depending on keep rail
The magnetic clip in the keep rail or in the single keep can be adjusted by
turning into the direction of the groove position or vertically in order to prevent
premature/late triggering or to counteract tolerances during door installation
(e.g. sash setting).
3.2.1 Adjustment of magnetic clip
+/– 3 mm
Adjustment
Figure 3.2.1-1:
Adjustment of magnetic
clip
