Winkhaus blueMatic EAV4 - Assembly of blue motor housing plug

510736460
3
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

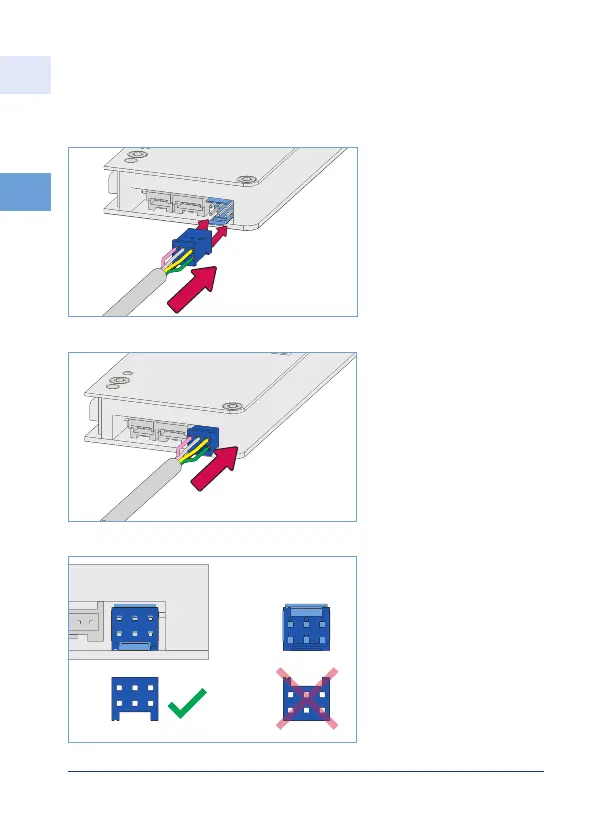

Figure 3.3.2-1:
Assembly of 6-pin, blue
motor housing plug, 2 x
guide lugs in correct
position of the socket
3.3.2 Assembly of blue motor housing plug
Figure 3.3.2-2:
Insert 6-pin, blue motor
housing plug completely
and smoothly
Figure 3.3.2-3:
Install the 6-pin, blue
motor housing plug in
the correct position
(not turned 180°!)
