blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
3.3 Cable transition
3.3.1 Cable transition T-KÜ-T1 ... (sash- & frame part)
Recommendation: It is recommended always that the cover plate (depends
on the faceplate and the material type of timber, PVCu/Vinyl or aluminum)
conceals the routing for the required cable reserves to prevent possible cable
damage, For hollow chamber/cable reserve in timber front doors, mill out
pocket of approx. 50 mm x 95 mm.
Installation sequence
Sash part
Frame part 1
Frame part 2
Cover strip
T-ABDECKUNG KÜ-T1
RT R8
Cover plate
(F16 = L 126 mm R8;
F20 = L 130 mm R10;
F24 = L 134 mm square)
Screw M3 x 12
(includet in delivery
from cover plate)
Fitting screw
(includet in delivery
from cable transition
sash part T-KÜ-T1 FT)

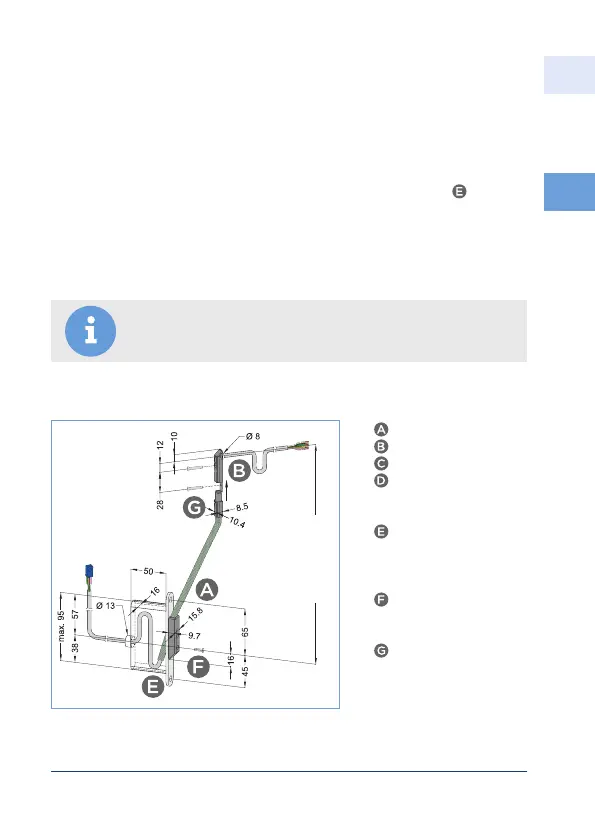

Figure 3.3.1-1: T-KÜ-T1 FT with cover plate and frame part 1
Notice: This cable transition is qualified for doors with 18 mm
fixed pivotal point and 180° opening. Do not bend the cable
transition.
Distance approx. 245Distance approx. 245
Under pre-tension!Under pre-tension!
