blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Attention! The cable transitions must be installed in the safe
area (e.g. installed concealed in the airgap) and protected
against manipulation.
Recommendation: It is recommended that the cover plate (depends on the
faceplate and the material type of timber, PVCu/Vinyl or aluminum) conceals
the routing for the required cable reserves to prevent possible cable damage.

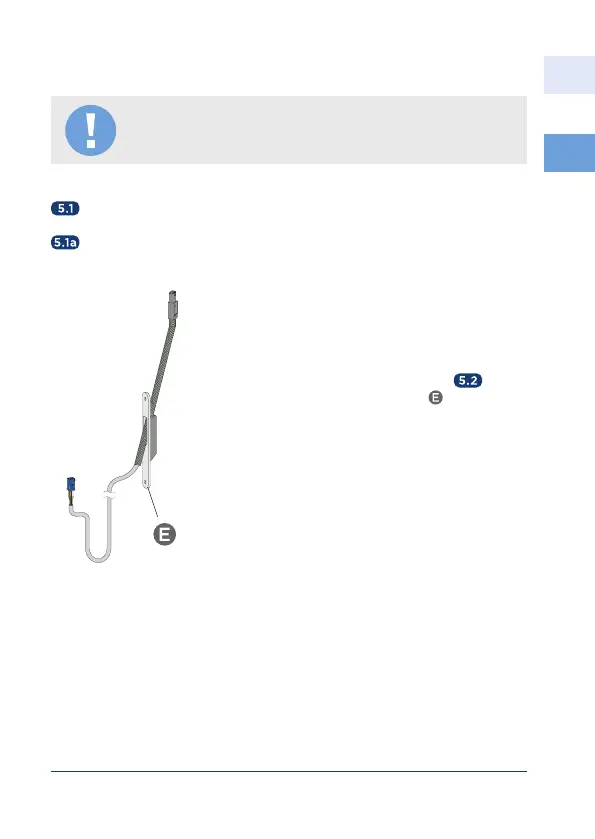

Cable transition sash part T-KÜ-T1 FT ...
Plug-in and concealed cable transition
• Inserted by plug-in function, with retaining
screws (3 x 20 mm)
• Sash part with spring sleeve in different
versions (see table)
• Order frame part separately (see
)
• Order cover plate separately
• Installed concealed in the airgap
• Electric interface between sash and frame
with 6 wires (max. 48 V DC/2 A each wire)
• color silver/grey
• No routing for > 11 mm airgap needed,
suitable for PVCu and aluminium entrance
doors (depends on the system), with
appropriate routing it is suitable for timber
doors
Cable transition sash part T-KÜ-T1 FT 2/3,5/4,5 m
