blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Notice: The magnetic clip must generally be ordered
separately. For single keeps, the magnetic clip with keep
(e.g. T-MAGNETCLIP 1,0 EAV4+/BM+ SB U24X5,5 GR or
T-MAGNETCLIP 1,5 EAV4+/BM+ SB U24X7,5 GR) must be used.

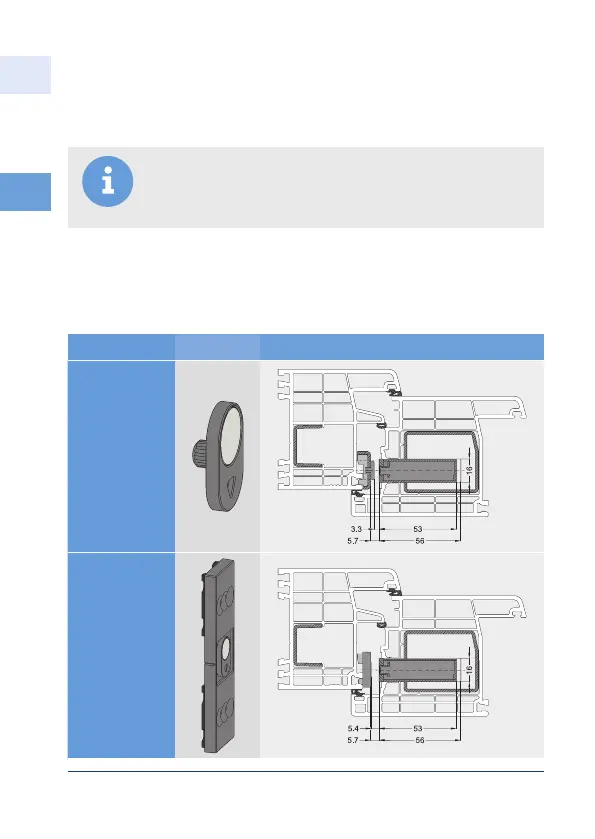

3.2 Magnetic clip
The door status (open/closed) is checked by the magnetic clip and a sensor in
the motor housing and after that automatic locking of the door is triggered. Ins-
tallation and adjustment are carried out as shown in Figure 3.1-4.
Description Variants Installation situations
Application of
extension keep
rail with mag-
netic clip / mo-
tor housing in
PVC-U profile
Application
of single keep
with magnetic
clip / motor
housing in
PVC-U profile
