Winkhaus blueMatic EAV4 -  Frame power supply (optional)

Notice: Operation of a second blueMatic EAV4 / EAV4+ locking
system with the same power supply is not possible.
A separate power supply must be used for each lock.
If you do not use the Winkhaus power supply unit, please keep
in mind the following information:
• Power supply 24V DC (stabilized)
• min. 1,5A continuous current (min.2,5A peak current)
• min. 36W
• tested according to EN62368
• with LPS (Limited Power Source = power source with
limited power)
510736441
2
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Frame power supply (optional)
T-NETZTEILRAHM V DC A
(AS) BMEAV
5083482

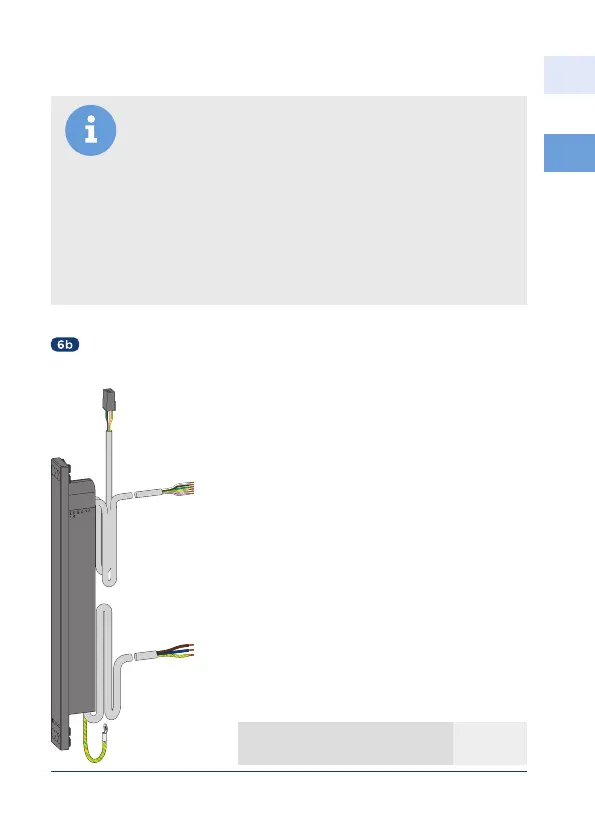

The Winkhaus frame power supply is a switching
power supply (single-phase, primary pulsed
installation current supply, high pulse load capa-
city, short-circuit proof, open-circuit proof, high
eciency, thermal overload protection). The
power supply is suitable for mounting in the
frame, on the construction site only the principal
voltage (230V AC) has to be made.
• 4 m cable for connection 230V AC with cable
end sleeves
• 0.4 m cable with eyelet (M4) for earthing the
door profile
• 0.2 m cable with plug for connection with
cable transition frame part T-KÜ-T1 RT
KABEL 0,6M RNT
• 4 m cable (6-wire) for external signal
(potential-free contact - switching time min.
0.5 seconds) from external access control
systems including voltage supply (output)
