Winkhaus blueMatic EAV4 - Accesories; Test device T-TESTGERÄT EAV4;EAV4+;BM+; LED EAV4+;BM+ STATUS

5107364136
9
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Taster 1 / Button 1
•
Umschaltung Tag / Nacht
•
switch day / night
L
E
D
2
•
S
ign
al, Tür geschlossen + verriegeln
•
sign
al, door closed and locked
H
in
w
e
is
/ Note
•
nur blueMotion BM+ / blueMatic EAV+ mit Kabelübergang
•
only blueMotion BM+ / blueMatic EAV+ with cable transition
L
E
D
1
•
P
ow
er on
Taster 2 / Button 2
•
Umschaltung Tag / Nacht
•
switch day / night
H
in
w
e
is
/ Note
•
nur blueMotion BM+ mit Kabelübergang
•
only blueMotion BM+ with cable transition
LED EAV4+/BM+
9 Accesories

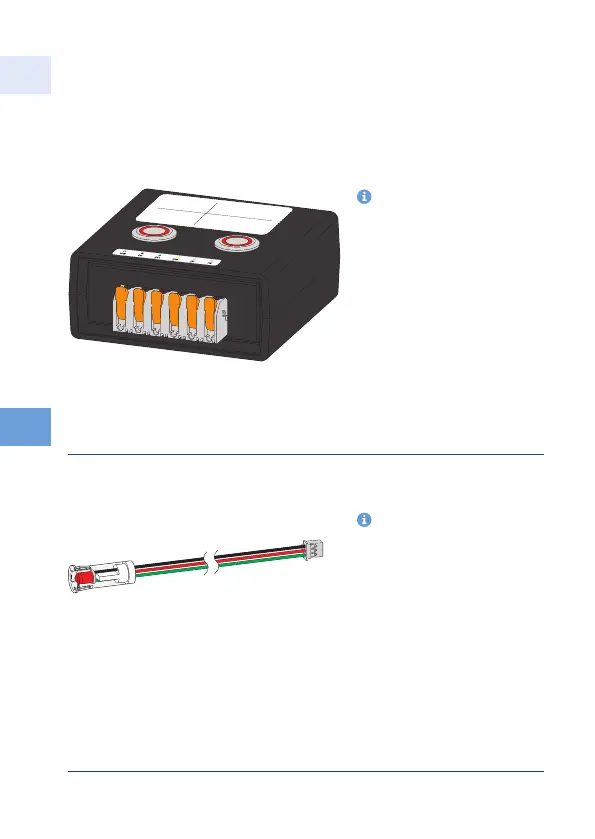

Test device T-TESTGERÄT EAV4/EAV4+/
BM+ (5091732)
Test device for checking
the functions of the motori-
zed locking system EAV4/
EAV4+/BM+
• For testing "motor
function", e.g. in the
workshop of processors/
door manufacturers
• (not for end customers)
• NOT intended for testing
with app (use smartphone
for this)
• Functionality of the test
device is explained by
means of a sticker
T-LED EAV4+/BM+ STATUS
(5088822)
LED for optional plug &
play connection to the BM+
or EAV4+ motor housing
shows the user how long it
takes the motor to unlock,
for example, or when the
door can be opened
(installation on the outside
of the door, e.g. for
environments with a high
noise level)
